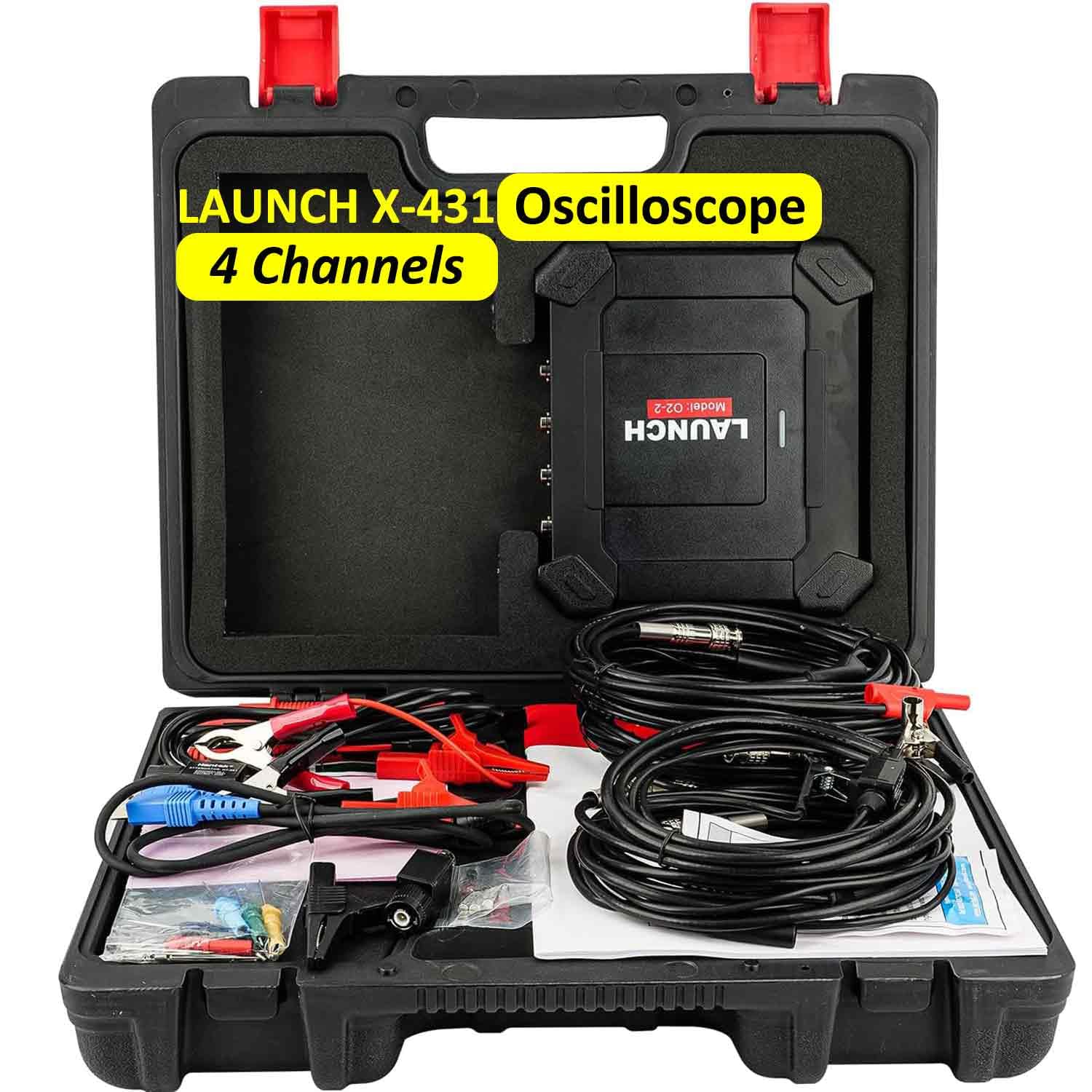

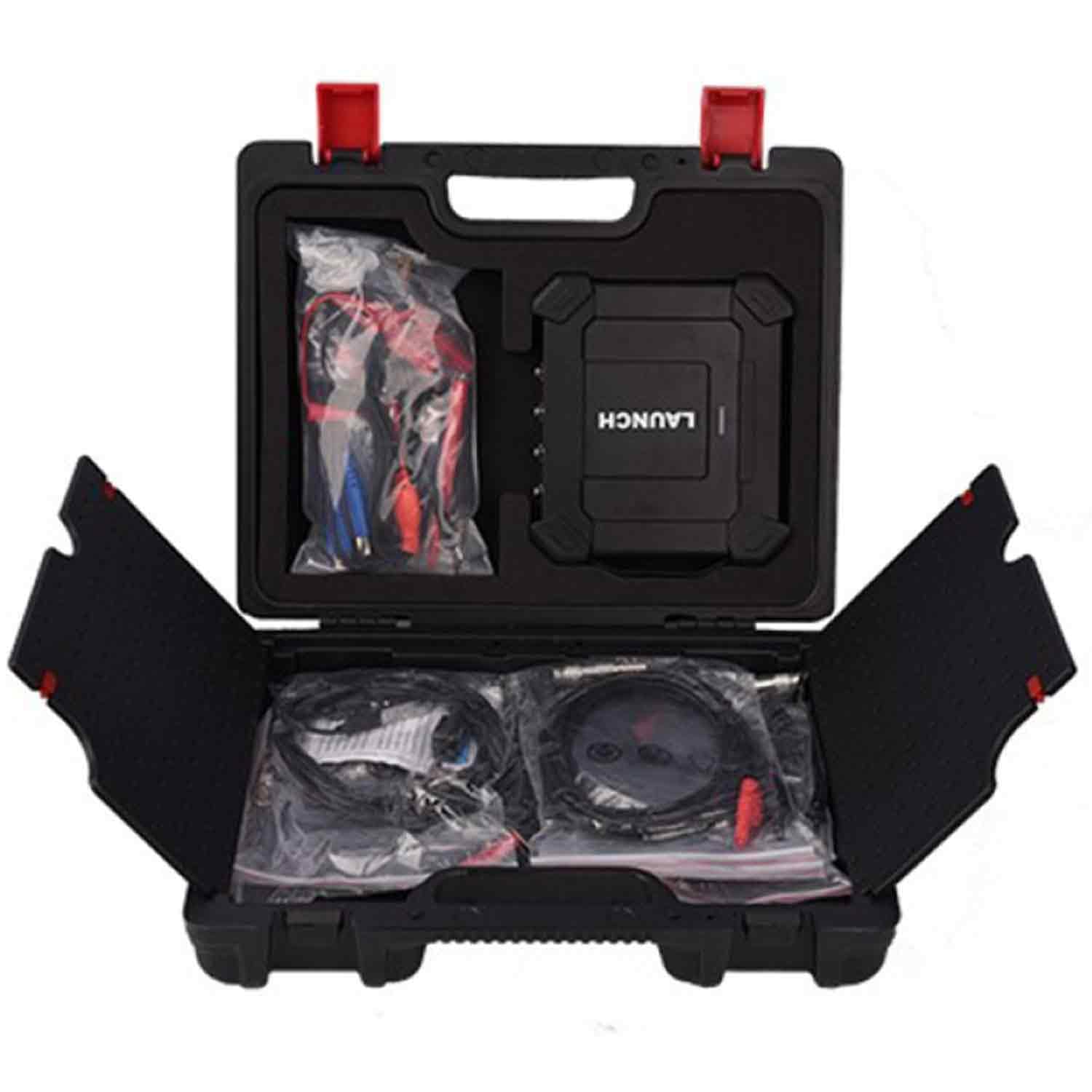

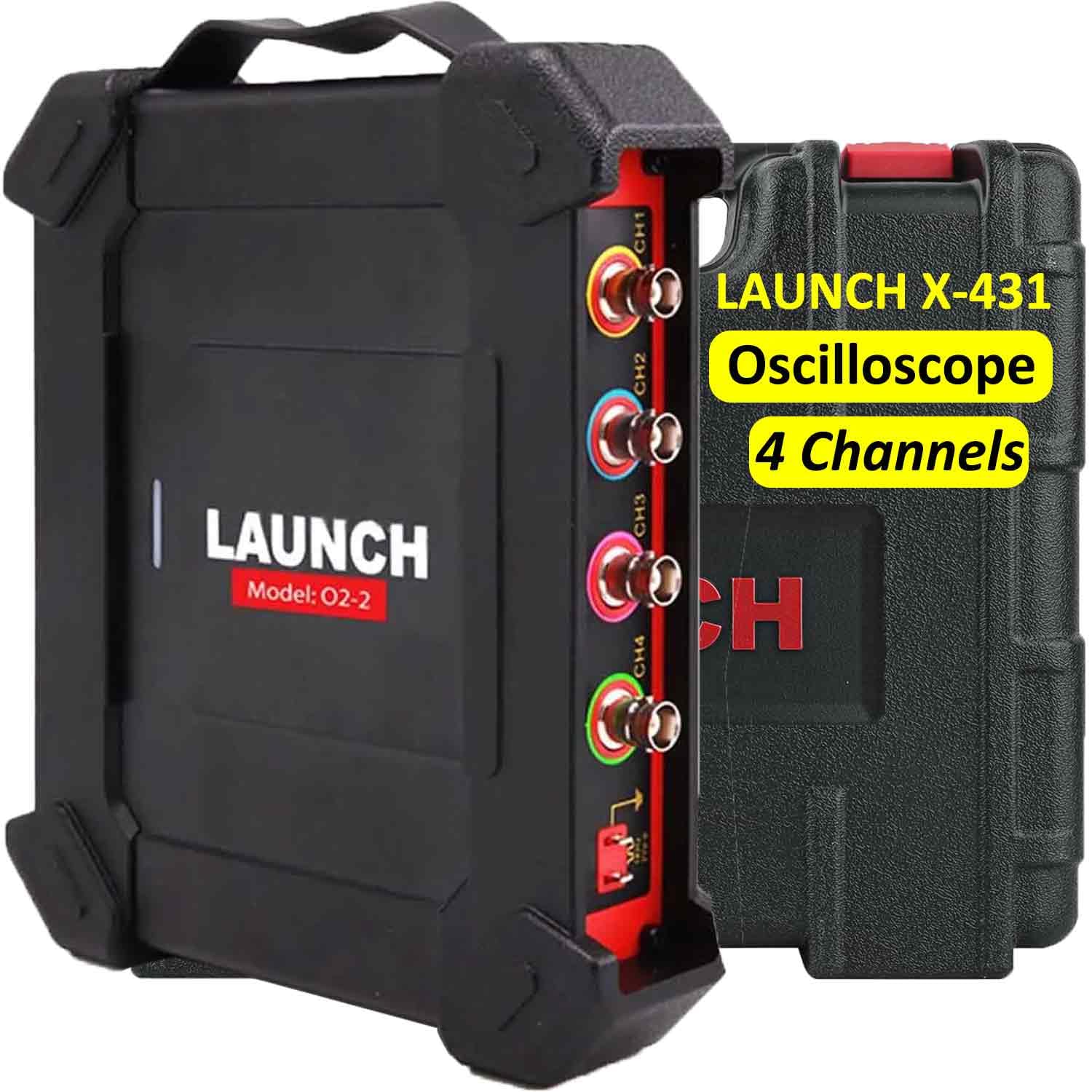

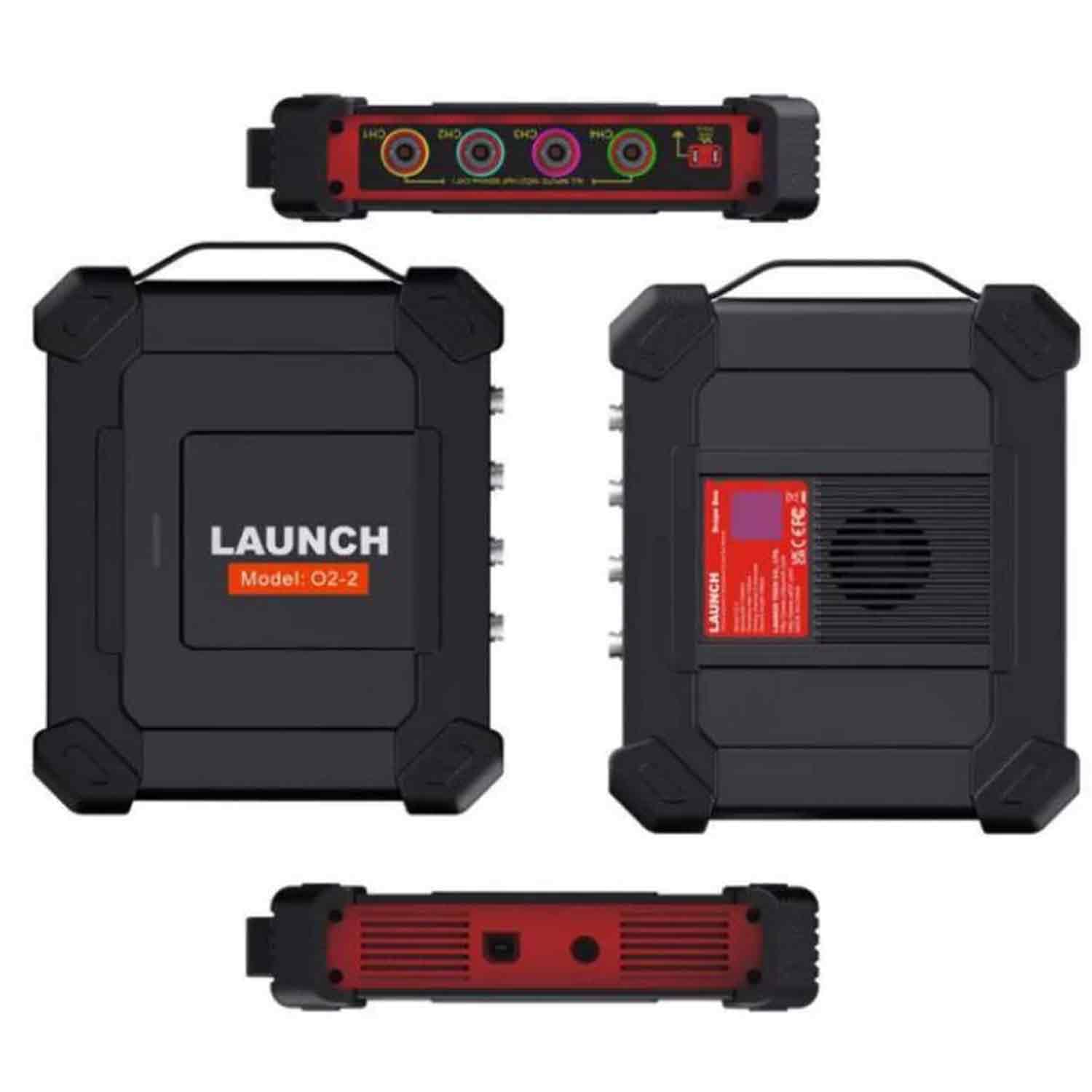

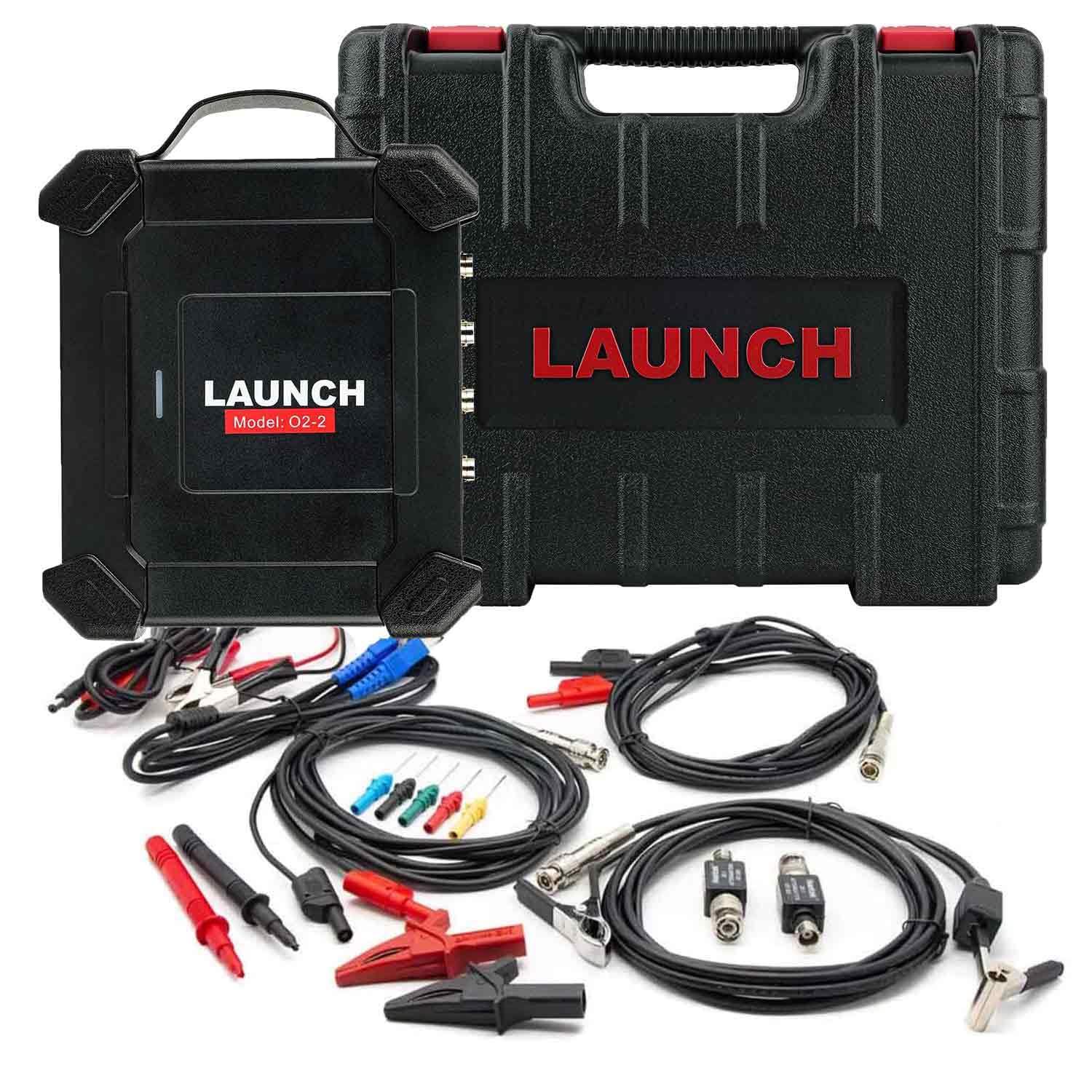

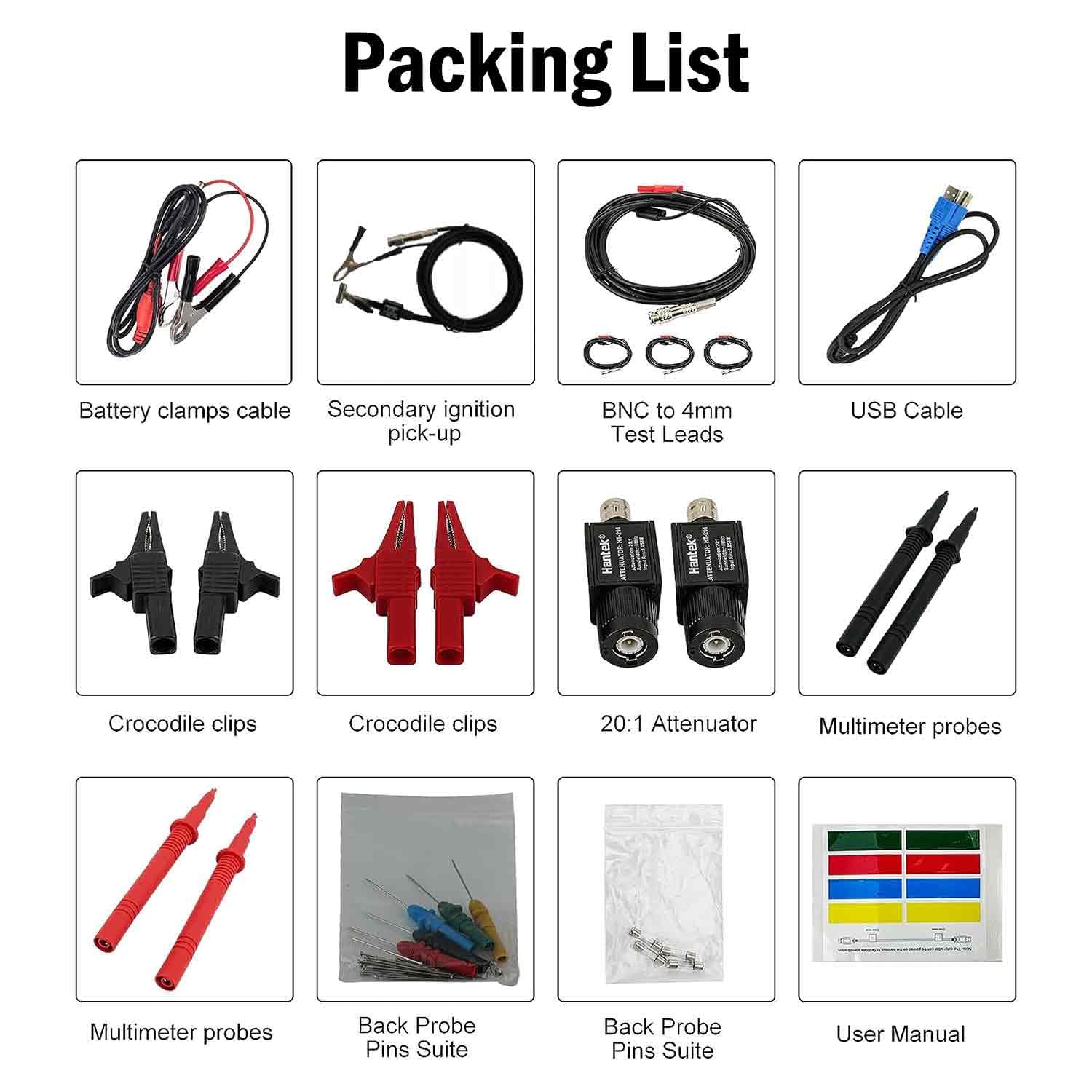

LAUNCH X-431 Oscilloscope O2-2 Scopebox Analizador 4 Channels Digital Scopebox Tester USB Port

This LAUANCH Electrical analyzer (oscilloscope) is stable, durable and portable. Launch X431 Oscilloscope is designed to analyzes data for all kinds of the testing applications on the automotive parts (including circuits, sensors,actuators, ignition etc.). to resolve complex electrical faults.

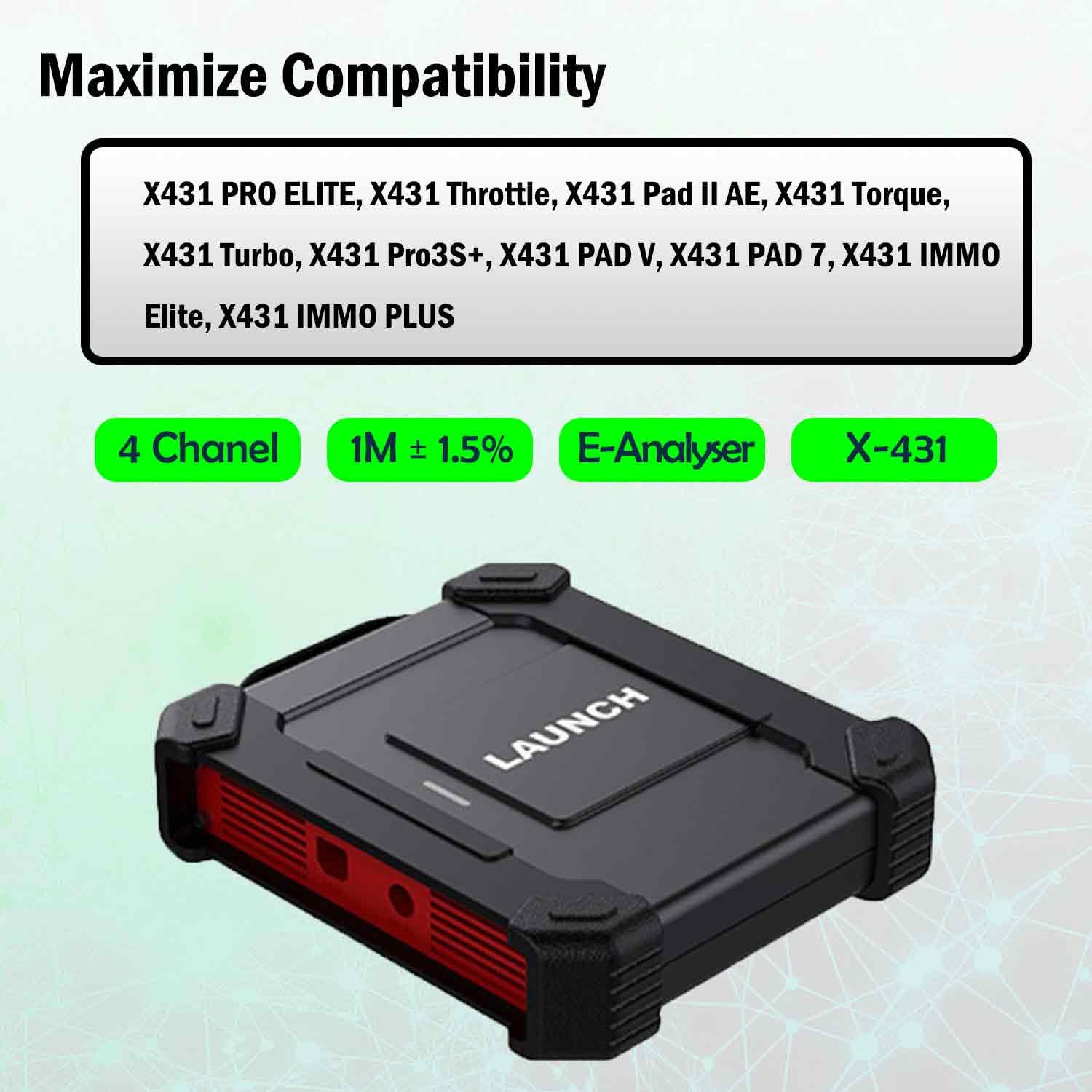

LAUNCH X431 O2-2 Scopebox Oscilloscope, an optional add-on module which turns your X-431 Throttle and X-431 PAD II into a 4 channel Lab Scope. By analyzing waveforms, a variety of faults on sensors, actuators, circuits and electronic control units can be discovered – saving time on vehicle diagnosis and cutting down on unnecessary parts replacement costs.

Features

• Extensive library of known good waveforms, waveform auto set-up on all 4 channels

• Ultra-fast capture of “glitch” occurrences with advanced triggers

• Plug & Play – Software comes pre-loaded in all the throttle and PAD III units; nothing to install!

• Independent ground on each channel – allows for clean signal without interference or potentially damaging feedback

• High quality Twist & Lock BNC connectors

• Built-in square wave signal generator ensures verification of accuracy & calibration

• Playback of waveform can be slowed down for observation and analysis

• Electrical signals and their waveforms can be recorded, displayed, compared and examined based on the following parameters: amplitude (the maximum voltage of a signal), shape (the form of the signal), pulse width (the duty cycle or time interval of the signal) and array (the repetition characteristics of the signal)

Specifications

• Channels: 4

• Bandwidth: 100MHz

• Rising time: ≤3.5ns(typical)

• Max. sample rate: 1Gbps(for four channels)

• Input impedance: 1MΩ±1.5%

• Storage depth: 50M(for four channels)

• Sample bit: 8bit

• Horizontal precision: 3%

• Horizontal scale: 5mV~10V

• Horizontal offset range: ± 2.5V(in case of probe switch “x1”, <500mV/div), ±120V(in case of probe switch “x1”, ≥500mV/div）

• Invert: Support

• Coupling: DC, AC


• Timebase: 50ns~1ks (1 channel), 10 200ns~1ks (4 channels)


• Timebase precision: 20ppm


• Acquisition mode: Normal


• Line decoding: CAN, LIN


• Trigger type: Edge, Pulse width


• Trigger mode: Normal, Auto and Single SEQ


• Trigger Coupling: DC, Noise rejection


• Display: YT, Zoom, Roll


• Roll mode: 200ms/div~1000s/div


• Automotive: Circuits, sensor, actuators, ignition


• Working temperature: 0℃~50℃


• Storage temperature: -30℃~70℃
