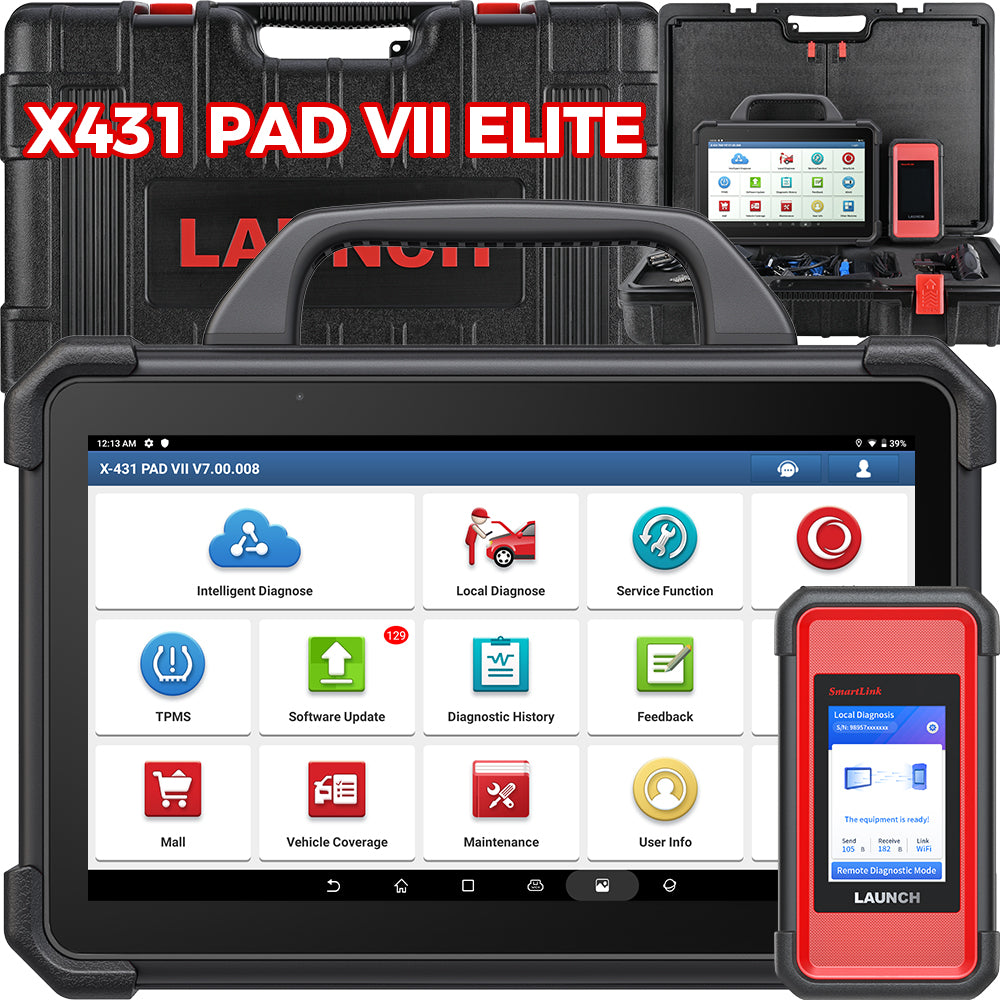

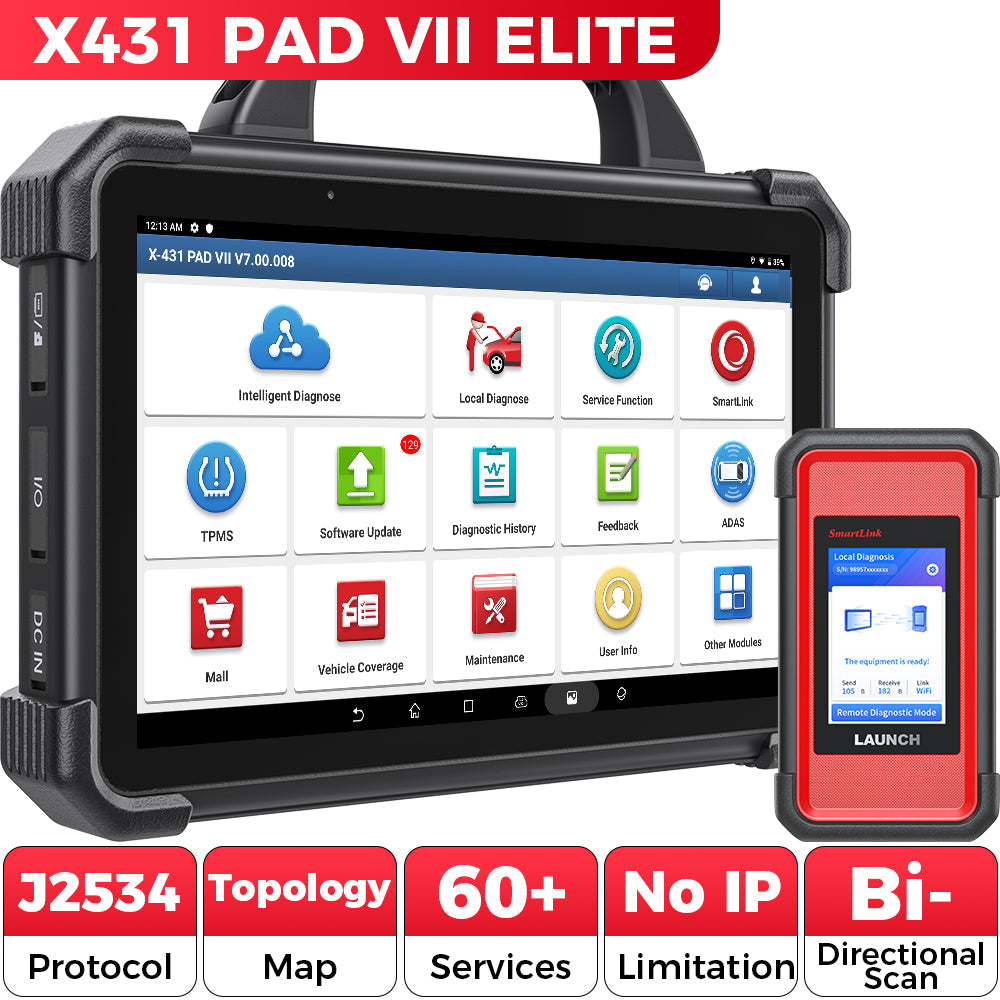

LAUNCH X431 PAD VII Elite Automotive Diagnostic Scanner with ECU Programming and SmartLink C2.0
Professional full-system diagnostics, ECU programming, J2534 PassThru, topology mapping and bidirectional control in one workshop-ready platform.
The LAUNCH X431 PAD VII Elite is a flagship automotive diagnostic scanner built for professional technicians, repair shops and diagnostic specialists. Paired with the included SmartLink C VCI, it combines OE-level diagnostics, ECU programming and coding, J2534 PassThru capability, full-system topology mapping, active tests and 60+ service functions in one integrated platform.
Vehicle coverage and available functions vary by make, model, year, region, control module and software version. Contact us with the VIN and required function if compatibility confirmation is needed before purchase.
Core Capabilities
- -ECU programming, coding, matching and personalization on supported vehicles
- -SmartLink C with J2534, D-PDU, RP1210, CAN FD and DoIP support
- -Full-system diagnostics with topology mapping
- -Bidirectional control and active tests
- -60+ service, reset, relearn and calibration functions
- -AutoVIN, AutoScan and diagnostic report generation
- -FCA SGW access through a registered AutoAuth account
- -Optional heavy-duty software and LAUNCH expansion modules

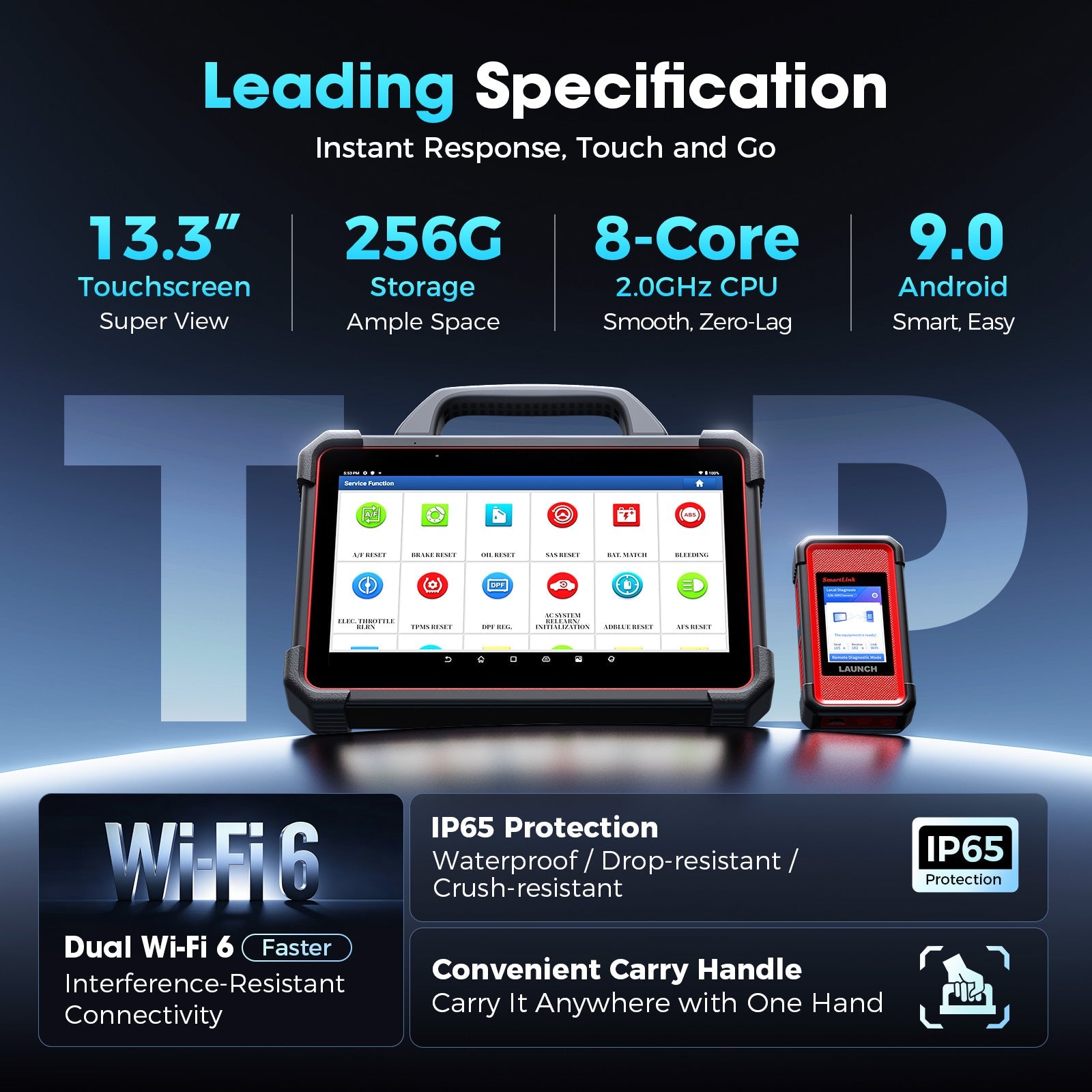

Workshop-Ready Hardware
The PAD VII Elite combines a large 13.3-inch Full HD touchscreen with 8GB RAM, 256GB storage and an 18,720mAh rechargeable battery. Its integrated handle, reinforced corners and 180-degree adjustable kickstand make it suitable for mobile use around the service bay.
- 13.3-inch, 1920 × 1080 capacitive touchscreen
- 8GB RAM and 256GB onboard storage
- 18,720mAh rechargeable battery
- Integrated carrying handle
- Reinforced soft-grip corners
- 180-degree adjustable kickstand
- IP65-rated housing
- Wi-Fi and wireless VCI communication
Actual battery runtime varies with screen brightness, network connection, diagnostic workload, battery condition and ambient temperature.

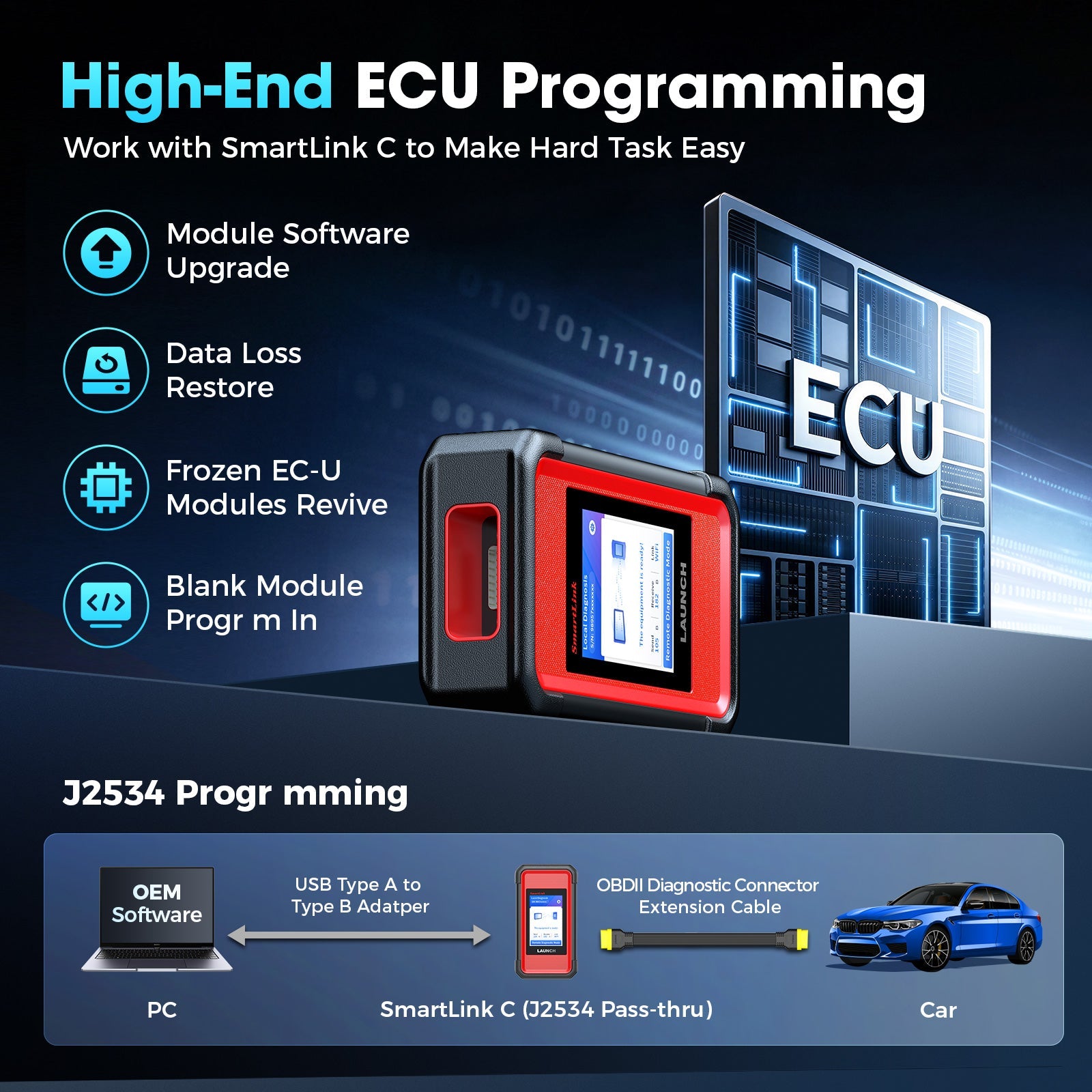

ECU Programming, Coding and Module Replacement
The PAD VII Elite supports ECU programming and coding functions for selected vehicle brands and control modules. Depending on the application, technicians can program data to a replacement module, update existing ECU software, perform coding or matching, and restore supported ECU data from a saved backup.
Available operations may include:
- Online and offline ECU programming
- ECU coding and SCN coding
- Module replacement and component matching
- ECU software updates
- Coding, adaptation and ECU data backup
- Supported ECU data recovery
- Manual and automatic programming workflows
Programming coverage is not universal. Always verify the vehicle, ECU part number and required operation before starting. A regulated vehicle battery support unit and stable internet connection are required for applicable online programming procedures.
Advanced Coding, Personalization and Retrofit
For supported vehicles, advanced coding can be used after module replacement or to configure available vehicle functions. Personalization and retrofit operations may include headlamp module replacement, ABS pump replacement, remote window settings, DRL brightness adjustment, ACC retrofit and steering-wheel retrofit.
Retrofit and personalization availability depends on the vehicle’s original equipment, installed hardware, control-module software and regional configuration. Hardware installation and coding requirements must be confirmed for each vehicle.

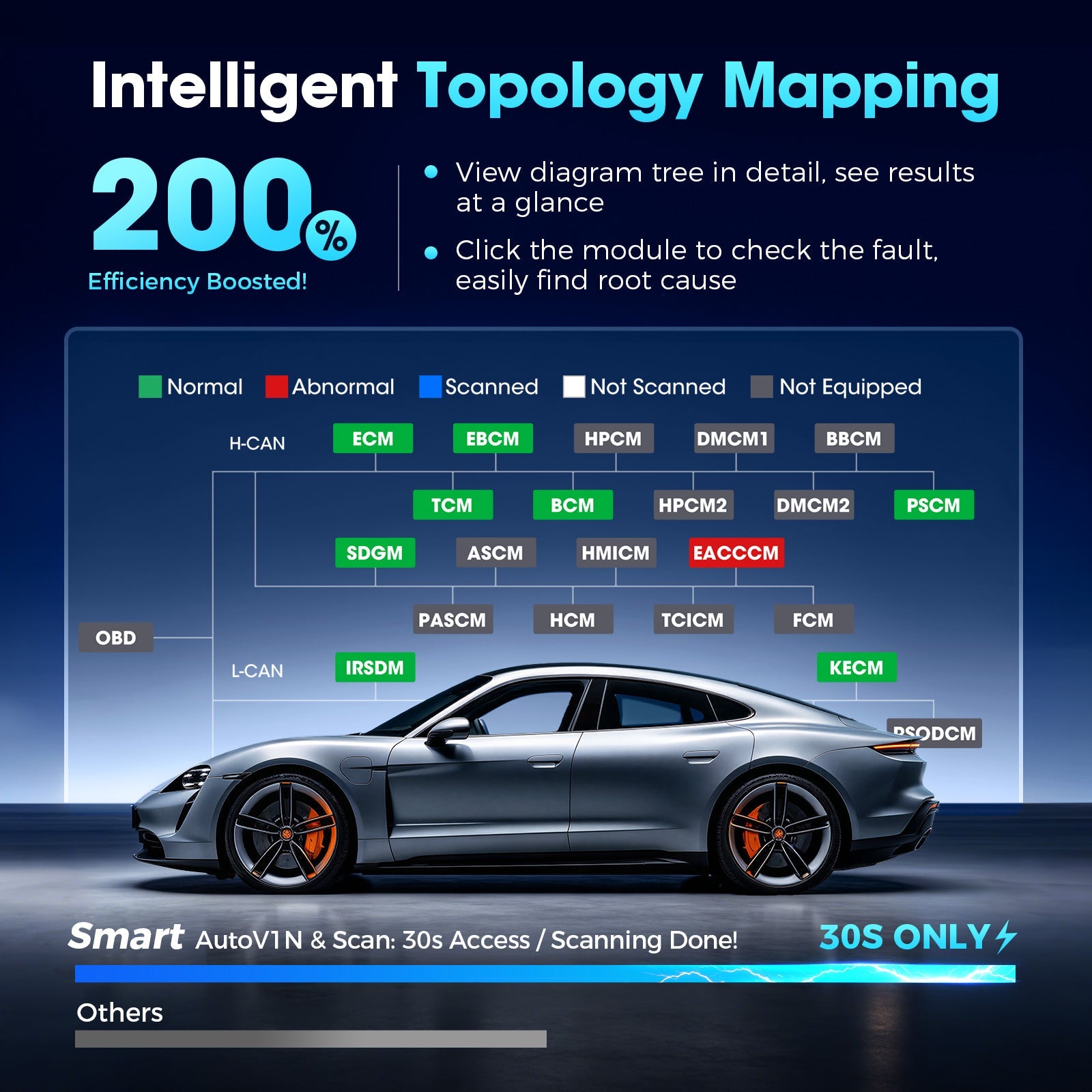

Smart Diagnostic Workflow with Topology Mapping
The PAD VII Elite brings vehicle identification, system scanning, topology display and report generation into one workflow.
AutoVIN can identify supported vehicles, while AutoScan checks accessible control systems. On compatible vehicle architectures, topology mapping displays the communication structure between modules and uses color-coded status indicators to help technicians locate DTCs and communication faults more efficiently. Diagnostic reports can then be generated and saved for review or customer records.
Broad Vehicle Coverage
The PAD VII Elite covers a broad selection of passenger vehicles across U.S., European and Asian markets, including conventional, hybrid and new-energy vehicle applications supported by the installed diagnostic software.
FCA Secure Gateway Access
The PAD VII Elite supports FCA Secure Gateway access through a registered AutoAuth account, allowing authorized diagnostic procedures on supported 2017 and newer Chrysler, Dodge, Jeep, Ram and other applicable FCA vehicles.
A valid AutoAuth registration or subscription may be required and is not included unless explicitly stated. Coverage and account requirements vary by country, vehicle and current service policy.
SmartLink C: VCI and Local J2534 PassThru Device
SmartLink C is the vehicle communication interface supplied with the PAD VII Elite. It supports modern communication protocols including CAN FD and DoIP and can also operate as a local J2534 PassThru device with compatible OEM programming software.
Supported standards include:
- J2534-1 and J2534-2
- D-PDU
- RP1210
- CAN and CAN FD
- DoIP
For OEM J2534 reprogramming, users generally need a compatible Windows computer, the vehicle manufacturer’s OEM software, a valid OEM subscription and any required login credentials. OEM software and subscriptions are not included unless specifically stated.
VAG Guided Functions
Guided Functions provide step-by-step on-screen instructions for supported Volkswagen Group vehicles, helping technicians complete applicable resets, adaptations, matching, calibration and basic-setting procedures without manually searching for channel numbers or login codes.
Supported applications may include selected Volkswagen, Audi, Škoda and SEAT vehicles. Function availability varies by model, year, system and software coverage.
60+ Service, Reset and Relearn Functions
The PAD VII Elite provides more than 60 commonly used service functions for supported vehicles, helping workshops handle routine maintenance as well as advanced reset, matching and calibration procedures.
Bi-directional Control and Active Tests
Bidirectional control allows the scanner to send commands to supported control modules and monitor component response. This helps technicians distinguish between component, wiring and control-module faults before unnecessary disassembly.
Active-test menus vary by vehicle and system. The scanner does not make every listed test available on every vehicle.
Full-System Diagnostics
The PAD VII Elite can scan accessible vehicle systems beyond the engine, including transmission, ABS, SRS, body, chassis, steering, suspension, HVAC, TPMS, ADAS and EV/HV-related control modules where supported.
OBD-II Pin Detection
With SmartLink C connected correctly to the vehicle DLC, the pin-detection function can check voltage and supported protocol information at the OBD-II diagnostic connector. This helps technicians identify connector, power-supply and communication issues before proceeding with vehicle diagnosis.

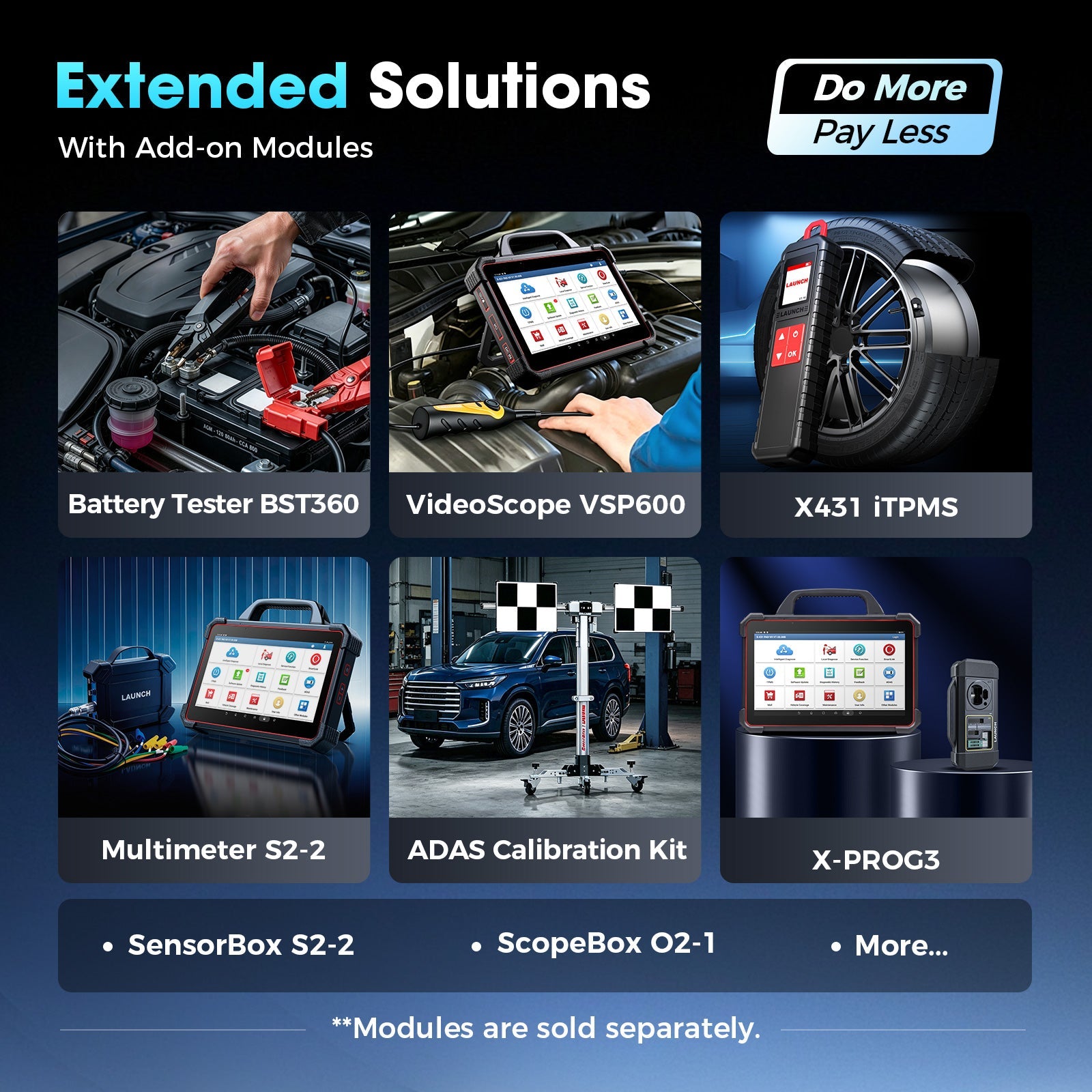

Expand the Platform with Optional LAUNCH Modules
The PAD VII Elite supports optional LAUNCH accessories for inspection, TPMS, battery testing, sensor simulation, waveform analysis and report printing.
- VSP-600 VideoScope: visual inspection in confined areas
- X-431 Wi-Fi Printer: prints compatible reports and diagnostic data
- X-431 TSGUN: activates, relearns and programs supported TPMS sensors
- BTS360 Battery Tester: battery, starting and charging-system testing
- S2-2 SensorBox: sensor signal measurement and simulation
- O2-1 ScopeBox: automotive waveform capture and circuit analysis
- X-PROG3: supported key programming and immobilizer operations
Optional modules are sold separately unless specifically included in the package.
Package Accessories
Important Programming and Compatibility Notes
Before ECU programming or coding:
1. Confirm support for the exact VIN, ECU and required function.
2. Connect a regulated battery support unit to maintain vehicle voltage.
3. Use a stable internet connection for online procedures.
4. Do not disconnect the tablet, VCI, computer or vehicle power during programming.
5. Make sure any required OEM software, account or subscription is active.
6. Follow the on-screen procedure and manufacturer instructions.
An interrupted or incorrect programming operation may leave a control module inoperative. ECU programming should be performed by trained personnel.
Functions or Services That May Require Additional Purchase
- OEM J2534 programming software and subscriptions
- FCA AutoAuth access
- Heavy-duty diagnostic software and truck adapters
- ADAS calibration equipment
- Optional LAUNCH expansion modules
- Manufacturer-specific online accounts or services
