[Ship From US] Autel MaxiCOM MK908 Diagnostic Scanner (Upgraded MS908 MaxiSys) with ECU Coding Bi-Directional All System Diagnoses

Autel MaxiCOM MK908, 2022 Newest

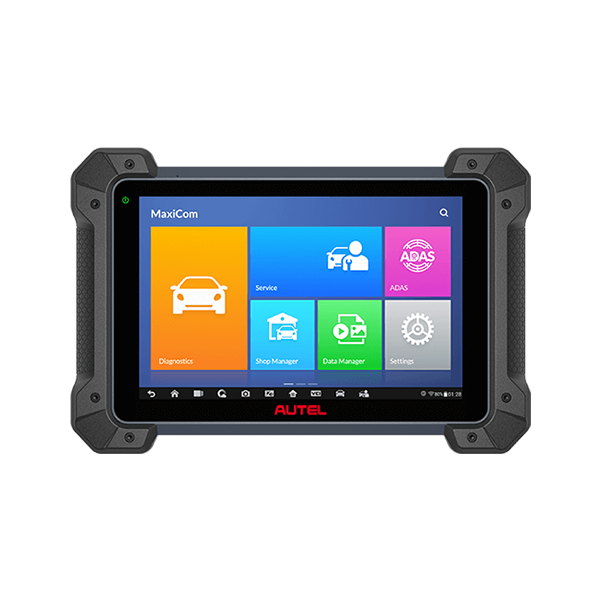

The MaxiCOM MK908 Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful A7 quad-core 1.30GHz processor, and a 10.1-inch capacities touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes Exceptional OE-Level system coverage for all electronic systems Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc. Smart AutoVIN technology for identifying vehicles easily Automatic system and software updates with real-time push message notifications via Wi-Fi Instant remote control tech support anytime, anywhere Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized Convenient data management system for managing internal program applications and reviewing data.

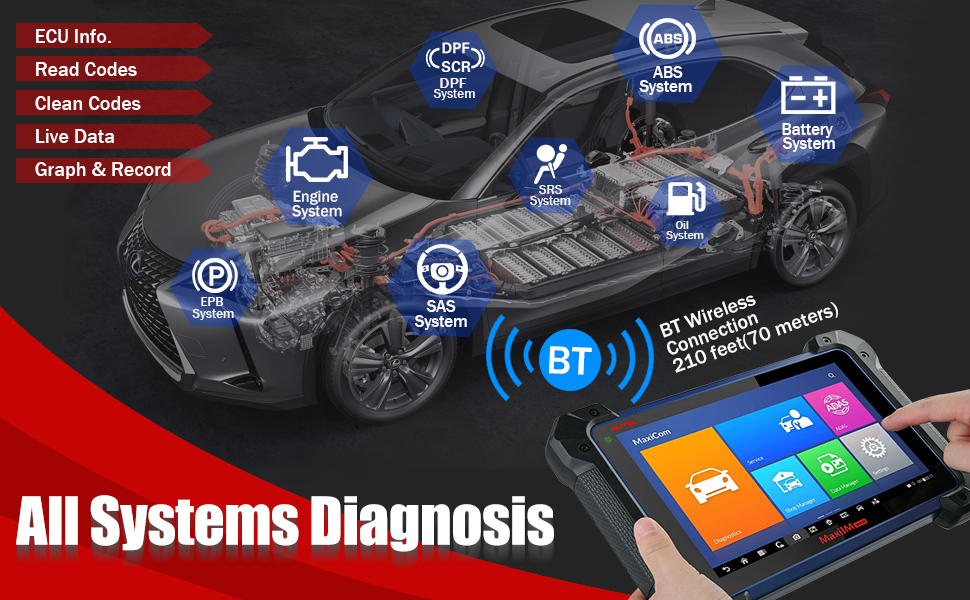

OE Level All Systems Diagnostics

MaxiCOM MK908 wireless scan tool comes with both wireless connection via VCI and lined connection via the USB cable attached. With a long working range of 210 feet(70 meters), MK908 can connect to your vehicle wirelessly to perform diagnostics and reset services.

NO MORE SHORT CABLES. NO ADDITIONAL EXPENSE ON EXTENDED CABLE.

As a professional all systems diagnostic scanner, MK908 can access and scan all available vehicle modules to perform in-depth diagnostics and analysis to pull codes, erase codes, view live data stream and be able to graph and record it, perform various vehicle-specific active tests, retrieve ECU information and etc.

Bi-Directional Control & Active Test

Autel MK908 allows you to perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor tests and checking Module information, etc. This service enables bi-directional control of the ECM so that the diagnostic tool is able to transmit control commands to operate the vehicle systems. This function is useful in determining whether the ECM responds to command well.

It can control various vehicle parts or components to perform active tests (also known as component tests, functional tests) like turn the fuel pump on/off, cycling the A/C Clutch on/off, EVAP test, testing individual fuel injectors, windows, doors, sunroof, wipers, to monitor the operations to check whether they are functioning properly and quickly locate the fault causes.

Advanced ECU Coding

NOTE: The programming function can only be applied through connection with the J2534 programming device, which serves as a PassThru interface to establish communication with and transfer data to the vehicle’s ECU

What's the difference between Coding and programming

A. Coding–also known as Teach-in Program, Component Adaptation or something similar, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

B. Reprogramming Operations –downloads new version of software subscription from theodolite server database through internet access (this procedure is done automatically when the MaxiSys display tablet is connected to the internet, so there is no need to check for software subscriptions yourself), and reprograms the newest software version to the vehicle’s ECU

31+ Maintenance Services

• Transmission Adaptation: Reset the adaptive shifting points in your automatic Transmission Control Unit.
• Suspension Calibration: Calibrate the suspension height.
• Crankshaft Variation Learn: Enables the computer to compensate for part manufacturing tolerances. This allows the computer to accurately detect an engine misfire throughout the engine RPM range.
• SAS Calibration: Perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM.
• DPF Regeneration: Burn the soot created by the process of combustion which is collected in the filter to make sure that the filter does not become blocked.
• Battery Registration: Register the new battery to the ECU after replacement.
• Injector Coding: Coding injectors after replacement.
• More...

FEATURES:

【Covering All Possible Diagnostics that Are OE-Related】

MK908 can be claimed as one of the most intelligent scanners as it scans all the diagnosable ECUs on vehicles. That is to say, the device covers all possible OE-Level diagnostics which allows you to establish a data link to the electronic control systems of the test vehicle via the VCI device for access to all vehicle systems and subsystems, such as Body, Chassis, Powertrain, Network and etc., to perform a comprehensive scanning process on ECUs to locate the faulty systems and retrieve the DTCs related. It will save you the hassle of diagnosing any un-identified engine errors you’d ever met:

• Generic OBD operations for retrieving OBD2 vehicle diagnostic information;
• Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
• Erase Codes – erases DTC records and other data from the ECM.
• Live Data – retrieves and displays live data and parameters from the vehicle’s ECU.
• Special functions for various scheduled service and maintenance performances;
• Oil Reset: Reminds you to change the oil when required.
• EPB: Reads, clears, and offers electronic park braking on flat roads.
• BMS: Shows all the information related to the battery management system.
• ABS: Reads and clears anti-lock braking system problems.
• DPF: Shows errors in the DPF system (removes soot from exhaust system).
• TPMS: Monitors air pressure in the tires.
• IMMO: Used for enhancing car security by serving as a code that starts the engine.
• Activities for figuring out whether a specific subsystem or component in vehicles goes well.
• Unlike conventional scanners, MK908 users can get access to the vehicle-specific subsystem and component parts, and output commands to the related ECU, thus driving the actuators to perform a specific function for determining the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

【Ultimate Configurations for Super-Level Diagnosis】

No doubt, as the upgraded version of MS908, the Autel MK908 scanner certainly surpasses much beyond the general expectations with any vehicle engine scanner tool. It is dedicatedly designed for 3 purposes – Multi-Tasking, Speed, and Simplicity that is the prime need, especially.

• Super CPU & RAM: This Android OS-based, tablet-style scanner sports an extremely powerful Hexa-Core 1.3GHz + 1.7GHzprocessor, and makes use of the internal 64GB solid-state drive, along with 2GB of RAM, for super speedy and smooth However MS908, by contrast, only gets 1.4GHz Quad-Core Processor and 32GB SSD drive.
• More Intuitive Display: Unlike MS908 supports a 7” 1024*768 display, the image clarity image is more admirable in MK908. It is equipped with a 10.1”, 1920*1200 resolution and back-lit LED multi-touch capacitive display for a better user experience. Moreover, there’s a built-in 8MP camera with a flashlight and autofocus. Compared with the 5MP camera equipped in MS908, you will take more detailed snapshots for deeper analysis. Also, saving that and all the diagnostic data/files is quite easy thanks to 64GB onboard memory space (only 32GB in MS908) at your disposal.
• Useful Multitasking: The diagnostic scanner incorporates high-quality diagnostic protocols with multitasking capable software, so it shouldn’t come as a surprise that this scan tool not only has amazing speeds but also gets the ability to multitask, to help you to keep an eye on impacts on other parts while fixing a particular part of the engine.

【Wide Compatibility and Vehicle Coverage】

This car diagnostic tool targets the standards of Asia, the United States, or European continents so as to offer extensive vehicle coverage. It is compatible with more than 80 US, European, and Asian makes and models including:

Chrysler, Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot, Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz, Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati, Maybach, Mini, Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3, Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, Ssang Yong, Subaru, Suzuki, Toyota, Isuzu, Mahindra, Perodua, Proton, TATA, HINO, UD, Fuso.

And once you find your car model, you would be highly impressed with the list of diagnostic solutions that this diagnostic scan tool has to provide. Also, it doesn’t mean it’s non-compatible with the vehicles manufactured in other regions or newly launched as the latest updates are frequently launched.

【Multiple Language Support for Variety and Flexibility】

This diagnostic device has a multilingual function with the ability to access the data in diverse languages as follows:

English, Chinese Simplified, Chinese Traditional, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian.

【Abundant User-Friendly Add-On Features】

• Extendable Feature: It can expand the diagnostic capabilities by working with MP408, MV108 to go deeper into the unseen details for locating the fault easily and accurately, or by working with TS601 for diagnosing comprehensive TPMS problems.
• AutoVinTechnology: The device equips with the latest AutoVIN technology with advanced Auto-Scan functions to identify CAN-Enabled vehicles, in one touch. It displays the data in the form of text, graph, analog, and digital gauges for efficient analysis.
• Fast Data Transfer (VCI): The package comes with both dual-band 11n Wi-Fi technology and long-range Bluetooth connectivity that provides its users with an ultra-fast Vehicle Communication Interface. You don’t have to wait. Just plug it into the OBD-II dashboard and it will diagnose with in seconds.
• MaxiFix: The MaxiFix application launches the online troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCOM users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
• Data Manager: The Data Manager application is used to store, print, and review the saved files for future reviews.
• ErgonomicDesign: The product has been designed to be carried single handy yet it doesn’t mean it will fit in the pocket. In particulars on the outside, you will see it adopts the real rubber protection design on both sides to be more ergonomic and to resist the damage of daily heavy use for maximum longevity.
• Big Storage Capacity: The diagnosing tool has 2GB RAM that dumps a huge amount of temp files and supports frequent live streaming. The dedicated RAM avoids the device-hang problem and ensures smooth operations. The 64GB Internal SSD stores all the detailed history of your clients.
• Auto Focus Camera: The product comes with a built-in 8-megapixel rear camera with a flash-light. The camera provides high-quality images as it has auto-focusing ability.

NOTICE:

Please close the anti-virus software on your PC when updating the device.

WARRANTY:

12-month warranty for any possible quality problems.


SPECIFICATION:

Operating System: AndroidTM 4.4.2, KitKat

Processor: Samsung Exynos hexa-core Processor

(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)

Memory: 2GB RAM & 64GB On-board Memory

Display: 10.1-inch LED screen with 1920x1200 resolutions

Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI

Camera (rear): 8.0 Megapixel, AF with Flashlight

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack; Power and Battery; 15000 mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage: 12 V (9-24 V)

Power Consumption: 6.5 W

Operating Temp.: 0 to 50°C (32 to 122°F)

Storage Temp.: -20 to 60°C (-4 to 140°F)

Housing: Strong plastic housing with protective rubber boot

Dimensions (WxHxD): 312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)

Weight (NW): 1.48kg (3.26 lb)

Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed, and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Autel MaxiCOM MK908 Package List:

• 1x MaxiCOM MK908 main unit
• 1x Free ML519
• 1x Bluetooth diagnostic interface
• 1x AC/DC adapter (12V)
• 1x Adapter for Benz-14 (Europe Only)
• 1x Adapter for Chrysler-16 (America Only)
• 1x User manual
• 1x Carrying case
• 1x Quick reference guide
• 1x Lighter fuse
• 1x Main cable
• 1x Adapter for GM/Daewoo-12
• 1x Adapter for Audi-2+2
• 1x Adapter for BMW-20
• 1x Adapter for Benz-38
• 1x Adapter for Kia-20
• 1x Adapter for Mitsubishi/Hyundai-12+16
• 1x Adapter for Nissan-14
• 1x Adapter for Honda-3
• 1x Micro USB Cable
• 1x Cigarette lighter
• 1x Soft cloth
• 1x Packing list
• 1x Mini USB cable
