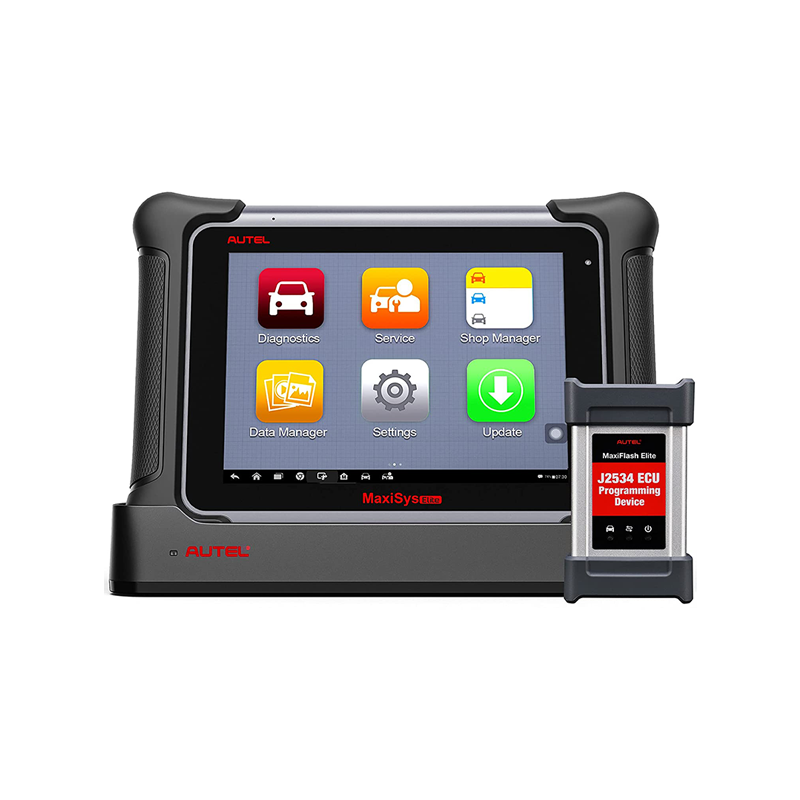

Autel Maxisys Elite Scan Tool (2022 ELITE Upgraded of MK908P) J2534 ECU Programming, Bi-Directional Scanner, 36+ Special Functions, 2-Year Free UpdateBurst Point of Autel Maxisys Elite:
- 2 Years Free Update, More effective than Autel MK908P/MS908S Pro: Autel MaxiSys Elite 2-year free update version, with the same functions and updated hardware from Autel MS908S Pro/MK908P, making itself the most cost-effective high-end diagnostic scanner in Autel product line.
- Elite-Live Up to Its Name: As the updated version of Autel MK908P/MS908CV, the MaxiSys Elite is more economical than Ultra which costs you 2000 bucks more. The flagship-product- MaxiSys Elite has equipped with a set of solid hardware such as ✅ Quad-core Processor- NVIDIA Tegra 4, ✅ 2GB RAM & 64GB ROM, ✅ 9.7” Retina display with ✅ 2048X1536 resolution,✅ Android 4.4.4 OS, ✅ 15400mAH battery, etc. We have prepared almost everything just to smooth a path for your vehicle diagnostic process.
- ECU Programming & Coding: To bring out your potential and maximize the profit, the MaxiSys Elite has featured two essential functions-ECU Coding & Programming which empowers you to 👍 program the blank ECUs, 👍 match the components, 👍 reflash the second-hand ECUs, 👍 flash the hidden functions. And also, you can pass thru the gateway to access online data, because the Elite is compatible with the J2534 interface. 👉NOTE: ONLY SUPPORTED IN U.S. MARKET.
- 36+ Special Functions & Full-System Diagnosis: The 36+ special functions can help you cope with a variety of DTCs as easily as ABC. Here is a list of commonly used special functions, maybe you can find something you’ve been looking for👉: Oil Light Reset, Steering Angle Reset, Injector Coding, ABS Bleeding, TPMS Reset, EPB Reset, Suspension Reset, etc. As for the full-system diagnostic, the Elite allows you to root out the problems hidden in the onboard systems such as👉 PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc.
- Online Functions & Active Test: The MaxiSys Elite also provides you with some high-end functions which help you to pass-thru the gateway to access online vehicle repair data for instance the online coding for VW, Audi, Porsche, Benz, BMW, and the online configuration for Renault and so on. To help you to build a bridge to mutual communication with the onboard systems, the active test can send the orders to ECUs and control the onboard modules such as PDM, SMF, RSM, TCU, etc.
- Worldwide Vehicle Coverage: We have collected more than 10000+ vehicle brands and models worldwide in our vehicle coverage database, from Asia to Eu, from North America to Australia. Let’s find out if your ride is on the list: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Toyota, Honda, Nissan, Subaru, BMW, BENZ, Audi, Subaru, etc. And also, 👍 some luxury brands have been included such as Bentley, Bugatti, Lamborghini, Rolls-Royce, Ferrari, Maserati, Maybach, and so on.
- Hassle-Free Customer Service: We know what troubles you the most, no worries, we will stick to the old rules: 30 days free refund, 2-year free update, 1-year warranty, and our customer service team always have your back 24/7. You shall never work alone.
Autel MaxiSys Elite, MaxiCOM MK908P, MS908S pro, Maxisys MS908cv Functional Comparison
Let's look at the features and functionalities of these Autel Automotive Diagnostic Tools
Product |
MaxiSys Elite |
MaxiCOM MK908P |
MaxiSys MS908S PRO |
MaxiSys MS908CV |
OBD2 Functions |
All Systems DTC Scan |
√ |
√ |
√ |
√ |
Service Function |
√ |
√ |
√ |
√ |
Bi-Directional Control |
√ |
√ |
√ |
√ |
Auto VIN Technology |
√ |
√ |
√ |
√ |
ECU Coding |
√ |
√ |
√ |
-- |
ECU Programming |
√ |
√ |
√ |
-- |
MaxiFix Cloud-Based Info System |
√ |
√ |
√ |
√ |
Data Manager |
√ |
√ |
√ |
√ |
Shop Manager |
√ |
√ |
√ |
√ |
Remote Support |
√ |
√ |
√ |
√ |
Pre-scan Report & Post-scan Report |
North America Only |
North America Only |
North America Only |
-- |
Print Feature |
√ |
√ |
√ |
√ |
Multi-language Support |
√ |
√ |
√ |
√ |
Domestic/Asian/European Coverage(1996-Present) |
√ |
√ |
√ |
√ |
Hardware |
CPU |
NVIDIA Tegra®4(4-PLUS-1 Quad-core Processor)1.8GHz with ARM Cortex–A15 CPU |
Samsung Exynos Hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
Samsung Exynos Quad-Core Processor 1.4GHz |
Touch Screen Display |
9.7” Retina display with 2048X1536 resolution&Capacitive touch screen |
10.1-inch LED screen with 1920x1200 resolution |
9.7 inch LED capacitive touch screen with 2048x1536 resolution |
9.7 inch LED capacitive touchscreen with 1024x768 resolution |
Wireless VCI |
MaxiFlash Elite |
MaxiFlash Elite |
MaxiFlash Elite |
MaxiFlash Elite |
Battery Life |
15400 mAh 3.7 V |
15000 mAh 3.8 V |
11000 mAh 3.7 V |
11000 mAh 3.7 V |
Memory Storage |
64GB |
64GB |
64GB |
64GB |
Weight (Display) |
3.5 lb.(1.59kg) |
3.26 lb.(1.48kg) |
3.13 lb.(1.42 kg) |
3.13 lb.(1.42 kg) |
Connector Kit |
√ |
√ |
√ |
√ |
Options |
Oscilloscope |
√ |
√ |
√ |
√ |
Inspection Camera |
√ |
√ |
√ |
√ |
ADAS |
√ |
√ |
√ |
-- |
Autel MaxiCOM MK908P same function as MS908S PRO, but at the same price, mk908p has a larger battery and a larger screen. |
Vehicle Coverage |
https://www.autel.com/vehicle-coverage/coverage2 |
24/7 Free Technical Support for You. Factory Direct Price. Any help ussupport@launchx431pro.com |
Why Buy Autel Maxisys Elite?
- 1. 100% Genuine Autel diagnostic scanner, 2 years free update online, one year warranty
- 2. The top diagnostic techniques, support almost all car brands, workshop Standard diagnostic equipment
- 3. Not only easy to use by own diagnostic software but also works on OEM software like xentry odis do special setting
- 4. Best price and service, US Stock & Free Shipping
- 5. Language: English+Spanish, Only sell to North or South America
- 6. Bluetooth Connection, mobile-free
Autel MaxiSys Elite Overview:
- 1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models.
- 2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming.
- 3. Uniquely integrated vehicle programming capabilities working with an SAE J2534-1 & -2 compliant vehicle programming pass-thru interface.
- 4. Automatic system and software updates with real-time push message notifications via the internet.
- 5. Instant remote control tech support anytime, anywhere.
- 6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors.
- 7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
- 8. Unique ergonomic design with rubberized outer protection and rugged internal housing.
- 9. The most efficient scanner featuring progressive technologies like the Auto VIN Scan & Wi-Fi Data Logging inside a very intuitive and user-friendly interface design. 2x faster than any comparable device and MaxiSys Elite provides extended battery life and intelligent power saving.
Autel Maxisys Elite Comprehensive Services
- The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics and analysis which includes OBD2 Basic Functions and Advanced ECU programming.
Autel Maxisys Elite All System Diagnosis
- I/M Readiness, O2 Sensor Monitor, On-Board Monitor, Vehicle Information, And Vehicle Status
- Retrieve and display ECU information of tested control unit, including unit type, version numbers, and other specifications;
- Read all kinds of DTCs from vehicle’s control systems to locate problem areas and offer possible solutions;
- Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
- Live data of each parameter item displayed in analog, text, waveform graph, digital, or full-screen display modes;
- The active test is used to access vehicle-specific subsystem and component tests.
Autel Maxisys Elite Special Functions:
- Oil Reset Service: To reset the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
- Tire Pressure Monitor System (TPMS) Service: This allows you to look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
- Electric Parking Brake (EPB) Service: Deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
- ABS/SRS Services: To perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.
- Steering Angle Sensor (SAS) Service: Allowing you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
- Diesel Particulate Filter service (DPF): Designed to perform the regeneration procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off.
Autel Maxisys Elite Advanced Functions
- ECU matching on Ford enables you to match the new ECU with your vehicle after replacing the old one
- The coding function helps you do programming and coding on some specified control modules
- The leading function for VW & Audi offers you step-by-step guidance as to how to fix the problem when you diagnosed the problem of the vehicle
- Anti-theft matching can disable the lost key and add the new key’s information to a program to ensure the security of your vehicle
- Injector programming will write the new code to the ECU after the replacement of the injector so that the injector works
- Throttle matching is to do ECU matching after throttle cleaning or replacement, etc.
Autel Maxisys Elite Online Programming
- Maxisys Elite diagnostic tool comes with Autel MaxiFlash Elite which allows it to process online ECU programming on Benz and BMW vehicles. This is the most advanced and valuable function for many mechanics and professional DIYers. Just do it as instructed, you will find it is easy to fix the complex problem with guidance.
Autel Maxisys Elite Super-sensitive Capacitive Screen Touch
Autel MaxiSys Elite Autel Cloud Technology
- Autel Cloud Technology (MaxiFix Platform, Data Management, Data Feedback) gives you support anytime, anywhere.
- MaxiFix application launches the online troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiSys users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
- The Data Manager application is used to store, print, and review the saved files.
- Shop Manager application helps you to manage the workshop information, customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service
Autel Maxisys Elite Automakers’ Service Web
- BMW: http://www.bmwtechinfo.com/
- Mini: http://www.minitechinfo.com/
- Porsche: http://www.porsche.com/
- Chrysler, Jeep, Dodge: http://www.techauthority.com/
- Ford, Lincoln, Mercury: http://www.motorcraft.com/
- Land Rover: http://www.landrovertechinfo.com/
- Volvo: http://www.volvotechinfo.com/
- Cadillac, Chevrolet, Daewoo, GM, GEO, Pontiac, Buick, Saturn, SAAB, http://www.gmtechinfo.com/
- Acura, Honda: http://www.serviceexpress.honda.com/
- Isuzu: http://www.isuzutechinfo.com/
- Mazda: http://www.mazdaserviceinfo.com/
- Mercedes: http://www.startekinfo.com/
- Mitsubishi: http://www.mitsubishitechinfo.com/
- Nissan: http://www.nissan-techinfo.com/
- Toyota, Lexus, Scion: http://techinfo.toyota.com/
- Volkswagen: http://www.erwin.volkswagen.de/erWinVW/
- Audi: http://erwin.audi.de/erWinAudi/
- Note: When reprogramming onboard, always make sure the vehicle battery is fully charged and in good working condition. During reprogramming, there is a risk of having the operation failure if the voltage falls below the proper operating voltage. Sometimes a failed operation can be recovered, but there is a chance that failed reprogramming could ruin the control module. We recommend connecting an external battery charger to the vehicle to ensure a successful operation.
Autel MaxiSys Elite Specification:
- Operating System: Android 4.3 Jelly Bean
- Processor: NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU
- Memory : 2GB RAM & 32GB Embedded Memory
- Display: 9.7” Retina display with 2048X1536 resolution & Capacitive touch screen
- Connectivity : 802.11a/b/g/n/ac WIFI
- Version 2.1 3Mbs Bluetooth
- RJ45 Ethernet Connection
- 3.0 USB (2.0 Compatible)
- HDMI 1.4a
- SD Card (Support up to 32GB)
- Camera : Rear: 8.0 Megapixel, Autofocus with Flashlight Front: 2.0 Megapixel
- Sensors: Ambient Light Sensor, G-sensor, Air Gesture Sensing
- Audio Input/Output : Microphone
- Dual Speakers
- 3-Band 3.5 mm stereo/standard headset jack
- Power and Battery: 3.7V/13600mAH Lithium-polymer battery
- DC/12V/3A Power Supply
- Input Voltage: DC/12V/3A
- Power Consumption: Max 20W
- Operating Temperature : -10 to +55°C
- Storage Temperature : -20 to +70°C
- Dimensions (W x H x D) : 309 X 225 X 35 (mm)
- Weight : 1.59 kg
Autel MaxiSys Elite Package List:
- 1x Maxisys Elite Main Unit
- 1x MaxiFlash Elite
- 1x USB Ethernet Adapter (Optional)
- 1x BMW Ethernet Cable (Optional)
- 1x Ethernet Serial Cable (Optional)AC/DC Adapter (12V)
- 1x AC/DC Adapter (12V)
- 1x Adapter for GM/Daewoo-12
- 1x Adapter for Fiat-3 (Cancelled)
- 1x Adapter for Benz-38
- 1x Adapter for Mitsubishi/Hyundai-12+16
- 1x Adapter for Honda-3
- 1x Adapter for PSA-2 (Cancelled)
- 1x Adapter for BMW-20
- 1x Adapter for Kia-20
- 1x Adapter for Nissan-14
- 1x Adapter for VW/AUDI-2+2
- 1x Adapter for Benz-14 (EU version only)
- 1x Adapter for Chrysler-16 (America Only)
- 1x Cigarette Lighter
- 1x Docking Station
- 1x TS Screwdriver
- 1x User Manual
- 1x Quick Reference Guide
- 1x Carrying Case
- 1x Lighter Fuse
- 1x Main cable
- 1x USB Cable
- 1x Clipper Cable
- 1x Soft Cloth
- 1x Mini USB Cable
Note: If the cable is Optional, it is not included in the box! There are some empty slots in the package. (Fiat-3, PSA-2, BENZ-14 adapter are canceled now if you need them you can buy them additionally!)
