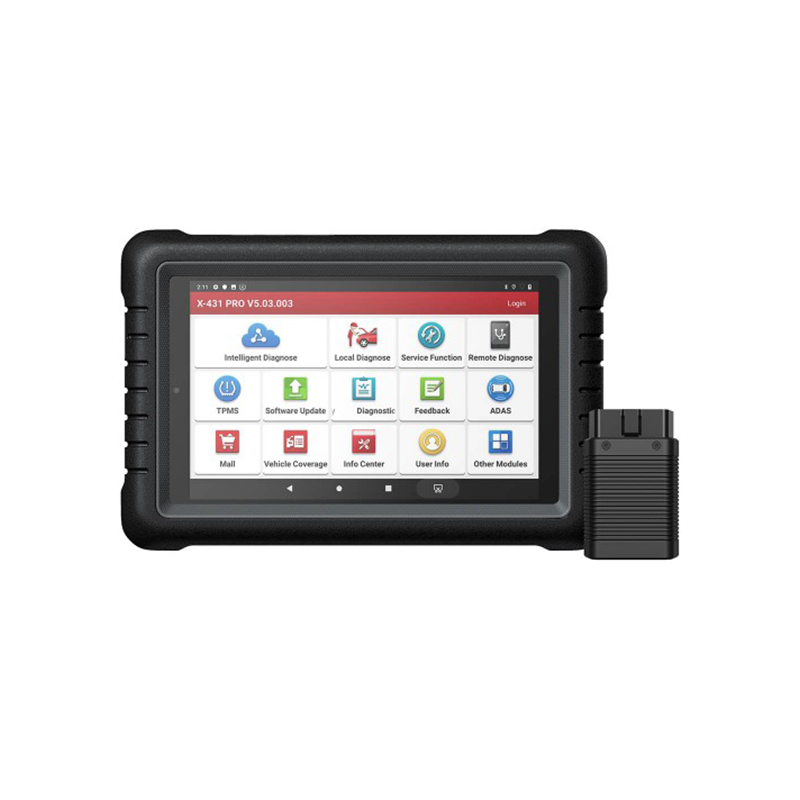

LAUNCH X431 PROS V5.0 OE-Level Full System Diagnostic Tool Support Guided Functions with 2 Years Free Update

The LAUNCH scanner Compared with traditional BT ports, DBScar VII VCI supports USB connections and BT dual wireless communication to achieve more stable, secure and effective data transmission.

CAN FD: CAN FD with flexible data rate overcomes the limitations of the classic CAN bus in terms of data transfer rate. By using the CAN-FD protocol, data transfer from the LAUNCH scanner is 6x faster. With the CANFD connector, your Launch

DoIP: LAUNCH DBScar VII VCI is compatible with the DoIP protocol. DoIP can save the cost and effort of separately integrating the DoIP protocol stack into each car electronic control device. The protocol applies to Volvo from 2018, Land Rover and Jaguar from 2017 and supports BMW F and G chassis models. (DoIP needs to purchase an additional test adapter.)

ADAS Calibration: Compatible with LAUNCH X431 ADAS Mobile to calibrate advanced driver assistance systems such as ACC, AEB and more. ADAS Calibrate a wide range of camera-based and radar-based driver assistance systems, perform ADAS calibration for vehicle cameras, LKA systems, ACC systems, LDW systems and AVM systems. ADAS is designed to improve the safety of drivers, passengers and pedestrians by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver maintain control to prevent an accident, and potentially reduce the severity of an accident if it cannot be avoided.

For 2017 and later FCA vehicles with Secure Gateway Module (SGW): Register with AutoAuth to allow your LAUNCH Cable.
VAG guided features for Audi, Volkswagen Skoda and Seat etc: step-by-step on-screen instructions, LAUNCH Thanks to this feature, you don't have to constantly respond to a mechanic's suggestion. **NO additional costs for using the VAG Guided Functions on LAUNCH X431 PROS V+ from October 2022.

Open the hidden features: Take full advantage of hidden features or disable the car's annoying features. 3-time turn signal setting, auto lock/unlock function, one-touch signal flickering, disable some buzzers, needle pivot, fold rearview mirror, disable daytime running lights, disable seat belt alarm sound, remove top speed limiter, etc.

(PMI) Programmable Module Installation: LAUNCH X431 PROS V+ Support PMI function, compatible with Ford /Lincoin/Mazda etc. This function is used when you need to replace a module (replace ECU) or initialize a module. No need to get the J2534 or purchase a subscription

Power Balance Test: The cylinder power balance test can help uncover hidden engine problems related to engine misfires, lack of power, or just a poorly running engine, which are often missed with other tests. Therefore, cylinder power balance testing is one of the best and easiest ways to find the cause of an engine misfire. Additionally, a cylinder performance balance test is often used along with cylinder compression and cylinder leakage tests to further pinpoint the problem.

Audi /VW Firmware Protection Cancel Features: One feature that most technicians really want is to remove firmware protection from their cars. This feature helps mechanics to replace car parts. (Supports BORA, CANDY, GOLF, POLO, SANTANA, TOURAN, A3, A4, A7, A8, Q5, Q7 etc.). The updated online coding function provides more comprehensive data information and supports automatic coding login. (Complete Models and Complete Systems)

Key Programming: Add, Delete and Reprogram Keys, Rewrite Smart Keys, Replace Smart Key ECU, Replace Knob IGNITION; Reset key: Relearn a key.
Cylinder balancing test/Cylinder leakage test/Cylinder pressure variations/Relative compression test

Active test : front and rear ACM solenoid valve on/off, fuel pump on/off, air conditioning on/off, clutch on/off, left clutch electromagnetic coil test ,Accelerator Test，Oil Pressure Control Test，DYNAMIC Camera Alignment，Vehicle Height Position Calibration, Brake Vacuum Pump, Intake and Exhaust Valve Tests, Brake Tests, Parking Brake Botors, Wheel Speed Sensor Supply, PARKING BRAKE Tests (Varies by Vehicle, Hundreds of Actuations Test Functions）...

LAUNCH X431 PROS V+ 5.0 is a professional diagnostic scan tool to diagnose complete systems in all vehicle systems on ECU:

>> ECU CODING:

Just like other LAUNCH X431 high-end OE-level scan tools, LAUNCH
Code your car optimally by adjusting some settings to your needs, e.g. B. Set alarms, lock doors, etc.
Access the ECU to take full advantage of the hidden features or disable annoying features of the car, such as 1. Changing the color of the interior lights, 2. Turning on/off the auto hold function, 3. Customizing dash kits, 4. Activate the automatic folding of the side mirrors function 5. Deactivate the automatic start-stop system .6. Remove/change speed limit
Provide excellent solutions to problems such as drivability, power loss, fuel efficiency, etc. to improve vehicle performance.
Reprogram the adaptive data for specific components after repairs or replacements.


>> ACTIVE TEST (BIDIRECTIONAL CONTROL): Launch , e.g. Turn on the radiator fan, modulate the throttle, open/close windows, operate the mirrors, check the injector buzzer, turn on the interior and exterior lights, operate the horn, test the door lock actuators and the like.

>> For 2017 and later FCA vehicles with Secure Gateway Module (SGW): Register with AutoAuth to allow your LAUNCH X431 PROS V+5.0 tablet to communicate with the FCA SGW authentication system and bypass the SGM to provide diagnostics and two-way without having to go through a bypass cable.

>> Key Programming: >>>>Add, Delete and Reprogram Keys, >>>Rewrite Smart Keys, Lost All Smart Keys, Replace Smart Key ECU, Replace BUTTON IGNITION;>>>>Reset Keys: Relearn a key. (Note: This key programming function is NOT universally compatible. Please check compatibility with us if necessary. to perform key programming.)

>> Complete system diagnostics in all vehicle systems on the ECUs: read/erase codes, view live data, get ECU version information. It performs active testing and service functions on all systems including ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, fuel system, lighting system and air conditioning. The functions cover up to 200,000 models worldwide.

>> 37+ Maintenance Information: There are some practical operation cases uploaded by LAUNCH to help you better understand how to do the next step. Refer to the maintenance materials for wiring diagrams of specific vehicle brands for reference.

>> BRUSH HIDDEN FUNCTION: You use this function when replacing modules like audio, radar, windows, etc. It can refresh the car to achieve the effect of the recognition module. Different cars support different module functions.

>> MATCHING: This function equalizes and synchronizes the components with each module after you replace the module, such as: Multimedia video reset / cluster reset / immobilizer service / tire change reset... etc. (depending on specific vehicle models, not for all vehicles)

>> Online repair resources: Provide more than 200,000 vehicle models with service and repair information, manuals, repair cases and operation skills

>> Maintenance Help: Including instructional videos, instruction manuals and user manual, questions and answers, quick start guide, etc. So you don't need to take it to the dealer.

More than 37 reset functions to solve tricky problems (quantity may exceed 100 depending on vehicle model and year)
>> More than 37 types, always growing (Some vehicles can have more than 130 special functions).

1.OIL RESET – Reset the oil life systems each time the oil and oil filter are changed;
2. FUEL INJECTOR CODING - Code new injector numbers to replace the previous one when installing the new injectors or after the replacement is completed;
3.BRAKE RESET - Disable and activate the brake control system, assist in brake fluid control, open and close brake pads, etc.;
4.SAS RESET – Perform steering angle sensor calibration and delete records;
5.BAT.RESET – evaluate battery charge status, monitor quiescent current, register battery changes, etc.;
6.ABS BLEED - If the ABS contains air, the ABS bleed function must be performed to bleed the brake system and restore ABS braking sensitivity;
7.ELEC.THROTTLE RLRN – Initialize the throttle actuators so that the “learned” values stored on the ECU are reset to the default state;
8. TPMS RESET – Tire pressure reset must be performed after maintenance;
9. Key coding: Help the ECU recognize the new keys when you need to add new keys.
10. DPF REG - Remove PM (particulate matter) from D.P.F filter through continuous combustion oxidation mode to stabilize filter performance;
11. GEAR (Crank Position Sensor Adaptive) LEARN - Perform gear learning for the car when replacing the engine ECU, crankshaft position sensor or crankshaft flywheel. (Available in the system menu and permanently available. Depending on the specific vehicle models, not for all vehicles, ). and more and more functions are being improved and optimized.1
12.EPB RESET - Help replace and reset the brake pad.
13.AFS HEADLAMP RESET – Initialize the adaptive headlight system.
14. Sunroof Initialization - The sunroof must be reset if the sunroof control unit has a communication problem or has been changed.
15.SUSPENSION RESET – Adjust the body height sensor for level calibration.
16. TRANSMISSION RESET - Help complete transmission self-learning to improve shift quality.
17. RESET TIRE – Set the size parameters of the modified or replaced tire.
18.A/F RESET – Set or learn the air/fuel ratio parameters.
19. ADBLUE RESET (Diesel Engine Exhaust Filter) – Reset the urea after replacing or refilling the diesel exhaust treatment fluid.
20. COOLANT BLEEDING – Activate the electronic water pump.
21.NOX SENSOR RESET – Reset the catalytic converter learning value stored in the ECU.
22.STOP/START RESET – Set up the automatic start-stop function in the control unit.
23. SEAT CALIBRATION – Calibrate memory in replaced or repaired seats.
24. TRANSPORT MODE – Disable transport mode.
25.WINDOWS CALIBRATION - Perform a door window calibration to restore ECU initial memory.
26.RE-LEARN/INITIALIZE AC SYSTEM. 27.E.G.R RESET. 28. RESET FUEL ALCOHOL LEVEL. 29. RESET FUEL TRIMMER. 30.HIGH VOLTAGE BATTERY DIAGNOSIS. 31. GPF REGENERATION. 32.LANGUAGE CHANGE. 33. ACTIVATE FUEL PUMP. 34. DISPLAY OF SCN. 35. INJECTION NOZZLE INJECTION QUANTITY ADJUSTMENT. 36. VARIANT CODING. 37. LEVEL CALIBRATION. 38. Relearning the camshaft/crankshaft sensor. 39.Fuel consumption test. 40. Reset fuel alcohol level. 41. Interactive Vehicle Dynamics (IVD) initialization sequence. 42. Pause/Resume Adaptive Transfer Learning. 43.Functions of the passive anti-theft system.44.SWS initialization.45.VIN registration (writing). 46.Normalize sliding sunroof.47.Activate tank detection. 48.HFM,throttle,radiator bypass.49.Idle adjustment.
50.Rain-Light-Solar-Fog Sensor Initialization.51.Remote Key/Ignition Key - Lock/Unlock. 52.Replacement particulate filter.53.CBS Reset UDS. 54. Change vehicle system language etc.!! Keep growing with UPDATES!!>>>>>(depending on specific car models, not for all cars, ). and more and more functions are being improved and optimized.

>> One-click automatic VIN detection: Intelligent AutoVIN technology to quickly and accurately identify vehicles with one touch to scan ECUs, capture vehicle information and perform diagnostics on select systems. Get your car's information quickly and save time.

>> 12-IN-1 Live Data Stream Analysis in Graphics: LAUNCH X431 PROS V+ scan tool shows you live sensor data and provides data graphics for intuitive diagnosis and monitoring of your vehicle performance to help customers better analyze the abnormal parameters .

>> 2 years free online update: No subscription fee! This code reader is supported by LAUNCH's promise of online updates to keep the software up to date. Only the official scanning tool can be updated.

>> Automatic printing and sharing of diagnostic report: The health report scans all vehicle modules and gives you a status list for the health of each module. This diagnostic tool can automatically generate a diagnostic report when the diagnostic work is completed successfully. The reports are stored internally in memory for later review. The reports can be saved in PDF format and since the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.

>> One-to-one online feedback - timely problem resolution: LAUNCH Scanner provides you with a feedback function to share problems you encounter during the diagnostic process. We will strive to solve problems without delay and improve product quality according to your problems and suggestions, so as to provide you with a higher quality user experience.

>> View History: Once a vehicle diagnosis is performed, LAUNCH X431 PROS V+ records every detail of the diagnostic process. You can record/review/playback live data at any time. The history feature provides quick access to the tested vehicles and users can resume the last operation without having to start from the beginning

>> Remote Diagnosis: Configures LAUNCH X431 PROS V+ as an I/M (Instant Messaging) tool, allowing technicians to share repair experiences and provide remote assistance more conveniently.

>> Maintenance Help: Including instructional videos, instruction manuals and user manual, questions and answers, quick start guide, etc.

>> What if I encounter problems during diagnosis?: For problems found during diagnosis, send the feedback immediately. Professional LAUNCH experts will provide perfect solutions for you as soon as possible.

>> Over 100 repair functions for specific vehicles (in-vehicle catalog) In addition, the launch scan tool has also developed over 300 functions for specific models. Compared with other diagnostic scanners that can only perform the reset function, the bi-directional scanner can perform deeper and wider resets, regenerations, initiations, adjustments, calibrations, replacements, etc.

Over 200000 vehicles supported, over 200 car manufacturers supported! (Almost cars in the world) (Car software update to 2021/2022/2023, including cars, SUVs, minivans, 12V light trucks.):

Amarica car models: --FORD, LINCOIN, GM, BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, JEEP, HM
European car models: - BENZ, SMART, SPRINTER, BMW, VW, SKODA, AUDI, OPEL, LAMBORGHINI, PORSCHE, MAYBACH, EURO FORD, LANDROVER, DR, BENTLEY, Rolls Royce, ROVER, MINI, VAUXHALL, FERRARI, FIAT, Abarth, LANCIA, Alfa, Romeo, Maserati, BUGATTI, PEUGEOTCITROEN, RENAULT, SAAB, VOLVO, OPEL, Dacia, SEAT
Car brands in Malaysia: -- PERODUA(PERODUA),PROTON ; IRAN car brands: --IKCO, MVM, SAIPA; Australian car brands: --Austford, Holden ;Indian car brands: -- TATA,MARUTI,MAHINDRA,India HM ;Russian car brands: --GAZ, VAZ; Brazilian car brands: --FIAT; GM;
ASIAN CAR Brands: --SAMSUNG, DAEWOO, SSANYYONG, HYUNDAI, KIA, HONDA, Acura, TOYOTA, SCION, LEXUS MAZDA, NISSAN, Infiniti, JPISUZU, TLISUZU, DAIHATSUSUZUKI, MITSUBISHI, SUBARU, CHANGCHENG, HUACHEN, ZHONGXING, JACTY, QIRUI_TY , ISUZU, JINLONG, CHANGAN, LIUWEI_TY, XINKAI, JPISUZU, ZHONGSHUN, HAOQING, HAFEI, . . . . [ CONTINUOUSLY GROWING vehicle coverage WITH UPDATES
