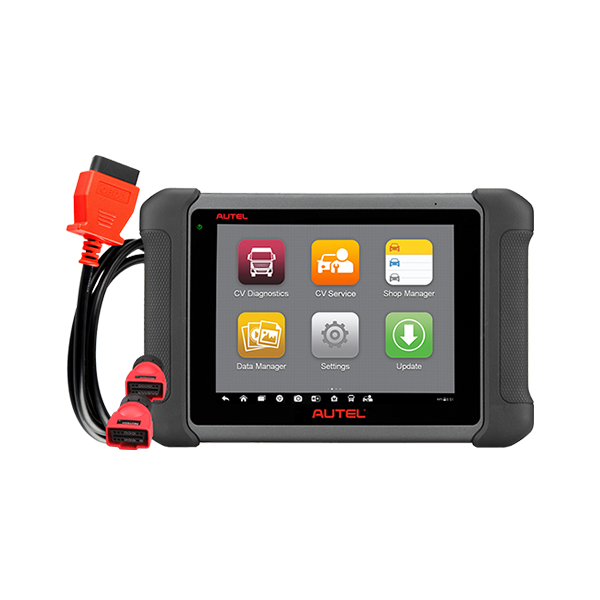

Autel Maxisys MS906CV Heavy Duty Diagnostic Tool

Autel MaxiSys MS906CV

• Autel MaxiSys MS906CV is an advanced diagnostic device developed for customers looking for a tool with ultra-convenient and modern design while delivering ultimate performance. Featuring the powerful Samsung Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), and an 8.0 inch LED capacitive touch screen, based on the Android multitasking operating system, and combined with the best possible coverage of OE-level diagnostics, the MaxiSys MS906CV is an ideal solution to manage your repair jobs smartly and conveniently with greater integration.

Autel Maxisys MS906CV Features:

• Extraordinarily powerful Samsung Exynos 5260 6-core processor
• 8.0¡± 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
• Internal reliable and fast 32GB Solid State Drive for better performance
• Built-in 8-megapixel rear camera with autofocus and flashlight
• 802.11b/g/n Wi-Fi to access your favorite web resources
• Unique ergonomic design with rubberized outer protection and a rugged internal housing
• Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
• Open source Android Operating System for fast boot-up and multitasking
• Easy and intuitive navigation makes finding what you need simple and fast
• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
• Smart AutoVIN technology for identifying vehicles easily
• Automatic system and software updates with real-time push message notifications via Wi-Fi
• Instant remote control tech support anytime, anywhere
• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
• Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Convenient data management system for managing internal program applications and reviewing data

Autel Maxisys MS906CV Specification:

• Operating System: Android? 4.4.2, KitKat
• Processor: Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
• Memory: 2 GB RAM & 32 GB ROM
• Display: 8.0" LED capacitive touch screen with 1024x768P resolution
• Connectivity: Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
• Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
• Sensors/Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone, Single Speaker
• Power and Battery: 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
• Input Voltage: DC/12 V (9-35 V)
• Power Consumption: 5 W
• Operating Temp.: 0 to 55¡ãC (32 to 131¡ãF)
• Storage Temp.: -20 to 60¡ãC (-4 to 140¡ãF)
• Housing: Strong plastic housing with protective rubber boot
• Dimensions (W x H x D): 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0mm (1.4")
• Weight: NW: 0.93 kg (2.05 lb.)

Protocols:

• ISO 9142-2, ISO 14230-2, ISO 15765-4, K-Line, L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J

MS906CV Vehicle Coverage:

• Autel?MaxiSys 906cv performs enhanced system diagnostics on more than 20 makes 80+ models of light, medium, and heavy duty commercial vehicles.
• Expert:
  ? Allison ? Bendix ? Caterpillar ? Cummins ? International ? Detroit ? PACCAR ? VOLVO ? Freightliner ? Wabco ? ZF Meritor ? MERCEDES BENZ? ?Boschauto ? Power Stroke ? AISIN ? IVECO ? Mack ? Eaton ? MTU ? MWM
• Truck:
  ? VOLVO ? AGRALE ? AUTOCAR ? CAPACITY ? Dodge ? FIAT ? FORD ? FOTON ? Freightliner ? GMC ? GREAT WALL ? HINO ? HYUNDAI ? ISUZU ? KIA ? MERCEDES BENZ ? MITSUBISHI ? MITSUBISHI FUSO ? NISSAN ? Sterling ? International ? IVECO ? VOLKSWAGEN ? Kenworth ? Mack ? Peterbilt ? WORKHORSE ? WESTERN STAR ? SETRA ? UD ? Renault
• Buses:
  ? OBD ? VOLVO ? AGRALE ? HINO ? ISUZU ? MERCEDES BENZ ? MITSUBISHI FUSO ? VOLKSWAGEN ? TOYOTA ? RENAULT

Autel MS906CV Package Content:

• 1x MaxiSYS MS906cv Tablet
• 1x AC/DC Adapter (12V)
• 1x Main Cable
• 1x Mini USB Cable
• 1x Clipper Cable
• 1x Cigarette Lighter
• 1x Light Fuse 6*30mm (2pcs)
• 1x Deutsch-6
• 1x Deutsch-9
• 1x UNI-4
• 1x 1-Year Software Updates
• 1x Year Warranty (Renewable)
• 1x Quick Reference Guide
• 1x Soft Cloth Screen Wipe
• 1x Soft Case
• 1x Carrying Case
• 2x JW1
• 2x JW2
• 2x JW3
• 2x JW4
• 2x JW5
• 2x JW6
• 2x JW7
• 2x JW8
• 2x JW9
• 2x JW10
