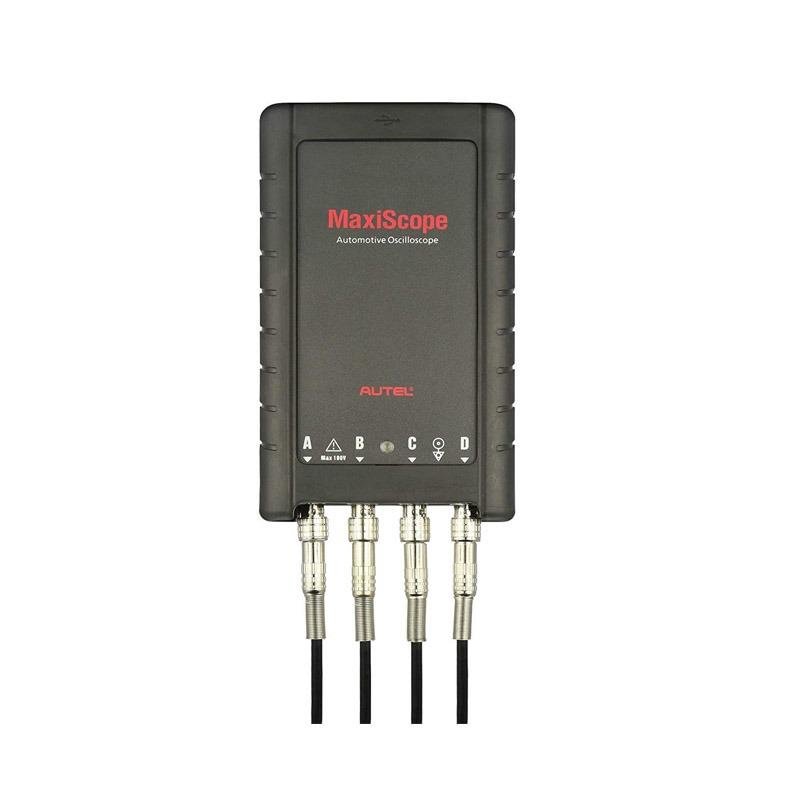

Autel MaxiScope MP408 is a PC-based 4-channel automotive oscilloscope. It works with PC or MaxiSys Tablet, will offer you an insight into the inner workings of a vehicle’s electronic circuits. It is suitable for most makes and models of modern vehicles. Autel MaxiScope MP408 is featured with a color-coded 4-channel control panel and could be updated software free online via the internet. After connecting the PC by the USB port, MaxiScope MP408 will get the power directly, making the system very versatile and portable to use.
Autel MaxiScope MP408 Features:
1. Features one-click auto-setup of voltage scale and time base
2. Works on all makes and models of modern vehicles
3. Intuitive UI design features easy trigger point adjustment and real time scale info display
4. Allows manual editing of measurement parameter display
5. Saves and reviews waveform data
6. Free online software update through the Internet
7. Compatible with LIN, CAN, and FlexRay data bus standards
8. Reads and displays electrical signals in high-resolution waveforms
9. Features color-coded 4-channel control panel
10. Portable design with strong housing and protective rubber boot
12. Direct power supply through a USB connection
Autel MaxiScope MP408
The MaxiScope MP408 is a PC-based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight into the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivaled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.
Autel MaxiScope MP408 Specifications:
Vertical resolution: 12 bits
Channels: 4
Bandwidth: 20MHz
Accuracy: 1%
Sensitivity: 10mV/div to 20V/div
PC Interface: USB 2.0 – Cable supplied
Power Requirements: Powered from USB port
Input Ranges (full scale): ±v50mV to ±100V in 11 ranges
Input Impedance: 1MΩ in parallel with 22pF
Input Type: Single-ended, BNC connector
Input Coupling: Software selectable AC/DC
Overload Protection: ±200V on a single input
Buffer Memory: 32M samples shared among active channels
Waveform Buffer: Up to 1000 waveforms
Timebase Ranges: 100ns/div to 1000s/div
Operating Temperature Range: 0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range: -20°C to +60°C
Storage Humidity Range: 5% to 95%RH, Non-condensing
Dimensions: 190X115X38mm
Weight: < 0.5kg
Maximum Sampling Rate (Single Shot):
-1 or 2 channels in use: 80MS/s
-3 or 4 channels in use: 20MS/s
Autel MaxiScope MP408 Specifications:
Vertical resolution: 12 bits
Channels: 4
Bandwidth: 20MHz
Accuracy: 1%
Sensitivity: 10mV/div to 20V/div
PC Interface: USB 2.0 – Cable supplied
Power Requirements: Powered from USB port
Input Ranges (full scale): ±v50mV to ±100V in 11 ranges
Input Impedance: 1MΩ in parallel with 22pF
Input Type: Single-ended, BNC connector
Input Coupling: Software selectable AC/DC
Overload Protection: ±200V on single input
Buffer Memory: 32M samples shared among active channels
Waveform Buffer: Up to 1000 waveforms
Timebase Ranges: 100ns/div to 1000s/div
Operating Temperature Range: 0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range: -20°C to +60°C
Storage Humidity Range: 5% to 95%RH, Non-condensing
Dimensions: 190X115X38mm
Weight: < 0.5kg
Maximum Sampling Rate (Single Shot):
-1 or 2 channels in use: 80MS/s
-3 or 4 channels in use: 20MS/s
Package Including:
1pcs x Autel MaxiScope MP408 Interface
1pcs x Compact Disc (CD)
1pcs x 1.5m USB Cable
4pcs x 3m (10ft) Screened Test Leads
1pcs x Secondary Ignition Pickup
1pcs x 2-pin Breakout Lead
2pcs x Attenuators 20:1
1pcs x Large Crocodile Clip Set
1pcs x Small Crocodile Clip Set
1pcs x Acupuncture Probe Set
1pcs x Multimeter Probe
