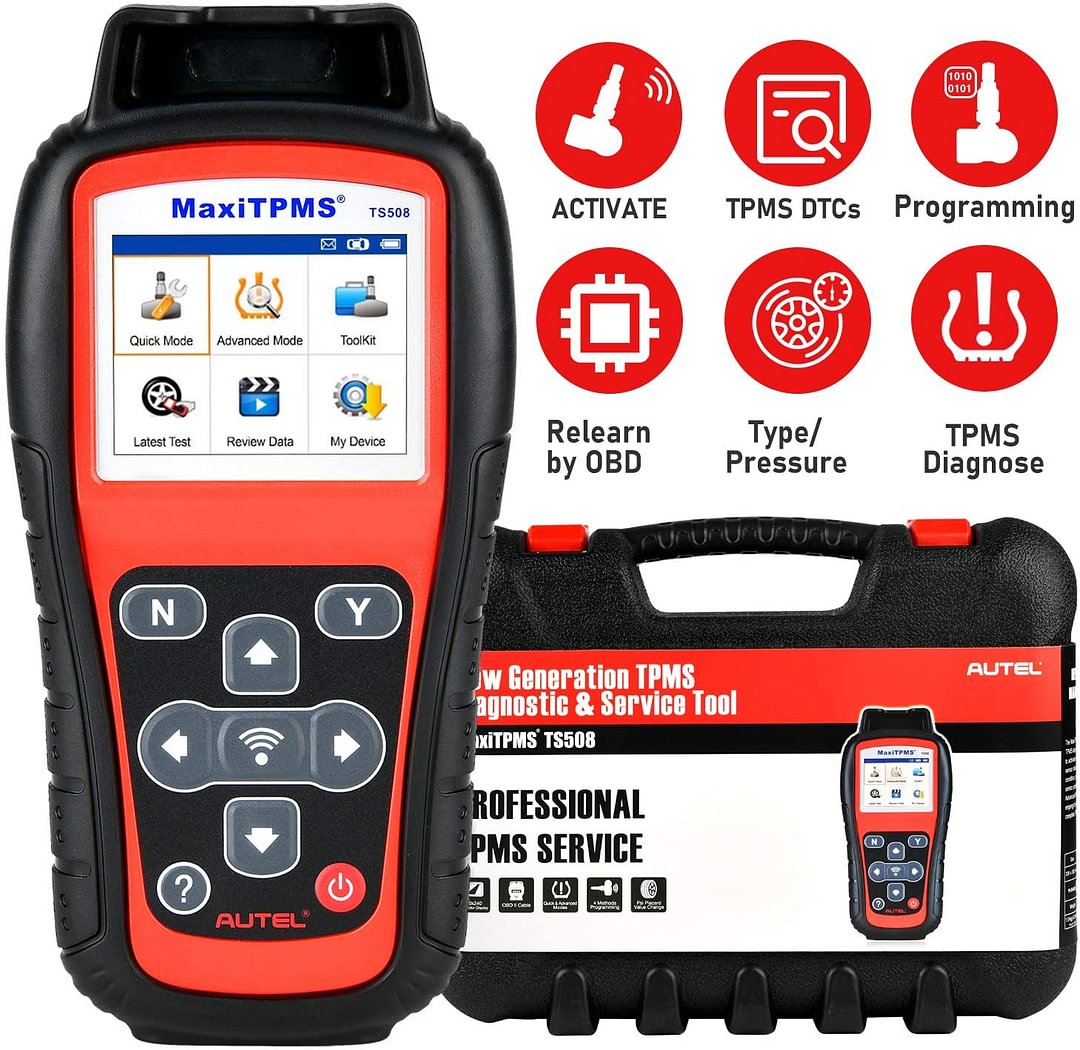

Autel MaxiTPMS TS508

Autel MaxiTPMS TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work.

Autel TS508 Support Multi-Language:

English, French, Spanish, German, Dutch, Swedish, Polish, Korean, Japanese, Italian.

Autel MaxiTPMS TS508 Advantage

The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

QUICK MODE / ADVANCED MODE COMPARISON

TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly

TPMS Advanced Mode: complete TPMS functions to perform sensor check, TPMS diagnose, MX-Sensor program and sensor position relearn.

EXCLUSIVE TPMS STATUS SCREEN

Read ECU sensor ID;

Check sensor ID and ECU ID matching condition;

Read DTCs from ECU and erase DTCs;

View DTCs detail description;

FOUR MX-SENSOR PROGRAMMING OPTIONS

Copy By Activation;

Copy By Manual Input;

Auto Create 1-16;

Copy By OBD;

Autel MaxiTPMS TS508 Features:

Vehicle Specific Database (Domestic, Asian, and European)

Auto Selection of Frequency for Fast Scanning

Two TPMS Service Modes to Use

Quick Mode for Fast Installs designed for tire/wheel shops

Advanced Mode To diagnose, repair, and replace TPMS for repair shops

TPMS Status Screens for Easy Diagnosis

Shows ID matching in color

Low Sensor Battery Indicator

Code Notification

Information - relearn procedures at the touch of the help button

Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)

Programs vehicle ECU to learn sensor IDs and positions

Activates ALL magnetic, frequency, and tire deflation triggered sensors using 125Khz continuous or modulated wave signals

Receives both 315MHz and 433MHz signals

Reads / writes sensor IDs from vehicle ECU

Reads / clears DTC's of TPMS and resets Malfunction Indicator Light

Programs Autel MX-Sensors 315MHz or 433MHz wirelessly

Checks Remote Keyless Entry (Key FOB) for transmissions

Reads Data including sensor IDs, tire pressure, temperature, battery condition.

OEM Part number and relearn information

Displays different sensor relearn procedures for different OEM sensors

OEM sensor information display based on vehicle Make/Model/Year

Displays OBD locations for test vehicles

The pre-selection process offers faster activation and diagnostics

Provides visual and audible responses to confirm sensors are working properly

On-screen code definitions

Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions

Proper LF signal to prevent being fooled by other RF signals

Built-in rechargeable 3.7 v Li-polymer battery

Automatic power-off to preserve battery life

Multilingual support: English, French, Spanish, etc.

Free Lifetime updates on the internet using the USB port

Ergonomic design features strong housing and protective rubber boot

TFT Color Display (320 X 240 dpi)

8.0" LED Capacitive touchscreen with 1024 X 766P resolution

Autel MaxiTPMS TS508 Specifications:

Display TFT color display (320 x 240 dpi)

Power 3.7 V Li-polymer battery; 3200 mAh

Operating Temp. 0°C to 50°C (32°F to 122°F)

Storage Temp. -20°C to 70°C (-4°F to 158°F)

Sensors 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)

Weight 0.39 kg (0.86 lb.)

Autel MaxiTPMS TS508 Package List:

1pcs x User manual

1pcs x OBD II cable

1pcs x USB cable

1pcs x Carry case

1pcs x AC Adapter

1pcs x Magnet

1pcs x CD
