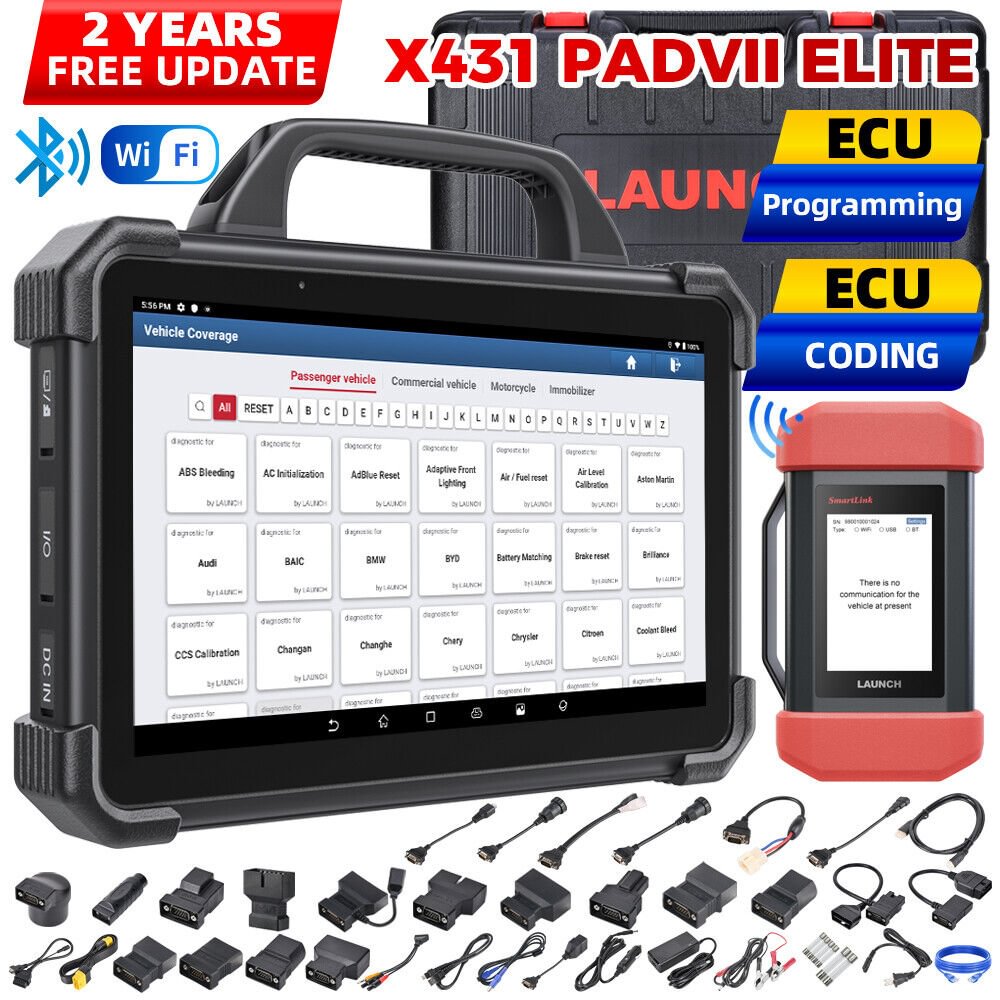

Original Launch X-431 PAD VII with Smartlink C VCI Automotive Diagnostic Tool Support Online Coding and Programming
Launch X-431 PAD VII PAD 7 Highlights:
Launch Tech X-431 PAD VII Diagnostic Tool features a 13.3" touchscreen, 32 service functions, and Smartlink remote diagnosis. The outer shell is designed to withstand workshop hazards such as water and dust damage and is in compliance with IP65. The X-431 PAD VII uses a high-capacity and high power battery to ensure a longer battery life with a shorter charging time. The tool offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software. The X-431 PAD VII supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.
X-431 PAD VII is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 9.0. It supports dual 2.4GHz &5GHz Wi-Fi communication. In addition to supporting the functions of padv products, it mainly features 13.3inch high-definition display, 8 + 256 storage space, especially with SmartLink C, which can support SmartLink remote diagnosis.
Superior Hardware Make Diagnosis Faster Than Ever
X-431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII makes your intelligent diagnosis faster than ever. The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into "Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.
1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Topology mapping gives a visual checking on DTCs and all systems communication status
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
7. Intelligent diagnostic enable identify VIN automatically and access system quickly
8. Guided function for VW and AUDI
9. Optional ADAS calibration function increases more revenue
10. Advanced coding and programming function
11. An extended solutio to support TPMS service
12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
13. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
15. Build-in repair information and training video modules help to track and fix issue fast
1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo
Heavy Duty Vehicles (Optional):
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
1. Check the DTCs and all systems communication status visually by topology module mapping function.
2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.
3. Check the DTCs and all systems communication status visually by topology module mapping function.
4. Powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
5. Display I/M Readiness Status.
6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.
7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Powerful Special Functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration, Communicates with ABS & Transmissions from Bendix, Wabco and Allison, Tech to Tech remote communication function
The powerful Smartlink C VCI powers the diagnostic to a new level. Users are available to perform remote diagnosis without being on-site and
the limitation of diagnostic functions, tools and vehicle types.
It is able to assist technician to identify the OBDII port pin automatically and display the real-time voltage for voltage condition
monitoring during live diagnostics.
Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.
* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade
In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:
Expanded Vehicle Coverage With Extra Adapters
Meanwhile, the X-431 PAD VII also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice
A. Display Tablet
|Item||X-431 PAD VII|
|Operation System||Andorid 9.0|
|Octa-core processor, 2GHz|
|Display||13.3 inch IPS capacitive touch screen with 1920 x 1080 resolution|
|Camera||13MP rear-facing camera (Auto focus), Front 8MP|
|WiFi||Dual Band 2.4 & 5GHz|
Wi-Fi: 2.4G/5GHz dual frequency
Universal serial BUS ports (1 x Type-C + 1 x Type-A)
|Speaker||Two 1.5W speakers|
|Storage Temperature||-20℃ ~ 70℃|
|Working voltage||DC 9V ~ 36V|
|Typical power consumption||≤ 6W|
|Communication via||Bluetooth, Wi-Fi or data cable connection|
|Operating Temperature||-10℃ ~ 50℃|
|Item Name||X431 PAD III V2.0||X431 PAD V||X431 PAD VII|
|Display||10.1'' / IPS 1920*1200||10.1'' / IPS 1920*1200||13.3'' / 1920 x 1080 IPS|
|CPU||2.0GHz Octa-core||2.0GHz Octa-core||2.0GHz Octa-core|
|Camera||8MP Rear + 2MB Front||13MP Rear + 8MB Front||13MP Rear + 8MB Front|
|VCI Connector||DBScar IV||Smartbox 3.0||Smartlink C|
|VCI Connection||Bluetooth||2.4GHz & 5GHz dual WiFi||2.4GHz & 5GHz dual WiFi|
|Adjustable Supporting Holder||√||√||√|
|IP65 Waterproof & Dustproof||√||√|
|Quick Charge Technology||√||√|
|Push Push Design|
|Size||317 * 202 * 53||320 * 211 * 46||353 * 236 * 71|
|Operating System||Android 5.1.1||Android 7.1||Android 9.0|
|Full System Diagnosis||√||√||√|
|OBDII Full Function||√||√||√|
|Tech-to-Tech Remote Diangosis||√||√||√|
|Smartlink Remote Diagnosis||√|
|Auto VIN Identification||√||√||√|
|VW&AUDI Guided Function||√||√||√|
|Complete TPMS Service||with X-431 TSGUN||with X-431 TSGUN||with X-431 TSGUN|
|Advanced Key Programming||with X-PROG 3||with X-PROG 3||with X-PROG 3|
|Vehicle Coverage||Passenger Cars Medium & Light Duty Vehicles
Heavy Duty Vehicles (Optional
|Passenger Cars Medium & Light Duty Vehicles
Heavy Duty Vehicles (Optional
|Passenger Cars Medium & Light Duty Vehicles
Heavy Duty Vehicles (Optional
|Service Functions||21||26||32 by local diagnosisGet More by Smartlink Remote Diagnosis|
|Elec. Throttle RLRN||√||√||√|
|Nox Sensor Reset||√||√||√|
|Seats Call Bration||√||√||√|
|AC System Relearn||√|
|Engine Power Balance Monitoring||√|
|Rotation Angle Sensor Calibration||√|
|High-Voltage Battery Health Detection||√|
|More Reset Services||via Smartlink Remote Diagnosis|
|X-431 ADAS PRO||√||√||√|
|X-431 ADAS Mobile||√||√||√|
|BST360 Battery Tester||√||√||√|
|X-431 TSGUN TPMS device||√||√||√|
|X-431 O2-1 Osciloscope||√||√||√|
|X-431 S2-2 Sensorbox||√||√||√|
1x X-431 PAD VIImain unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope
1x Non-16pin connectors set
